User’s Manual
Enterprise Access Point ENGLISH
13
Copyright © 4IPNET, INC.
EAP320

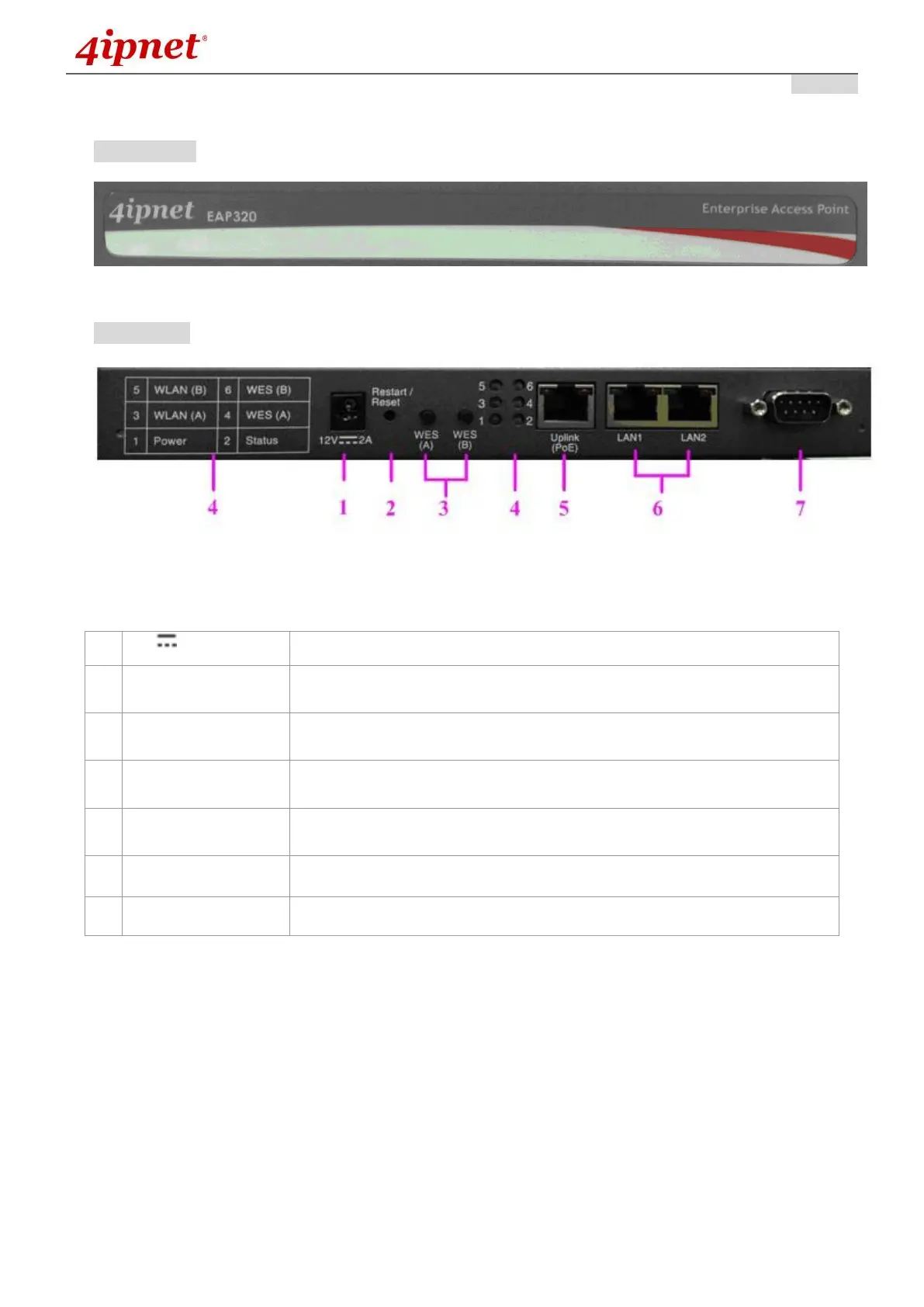

Front Panel
EAP320 Front Panel
Rear Panel
Figure 2 EAP320 Back Panel
1
12V 2A
Power Jack Socket
2
Restart / Reset
Press once to restart the system; to reset the system to factory default
settings, hold for more than 5 seconds.
3
WES Button (A / B)
WDS Easy Setup. Press the button to build up a WDS link with another
peer. 4 WDS links can be set up per RF card.
4
LED Indicators
6 indicators that displays the states of 6 various functions or progresses.
The numbers are explained on the leftmost side of the rear panel.
5
Uplink Port (PoE)
The port for uplink connection to another gateway or device. PoE is
supported.
6
LAN Ports 1~2
The ports for connections with LAN side devices.
7
Console Port
To access EAP320 via the console interface.
