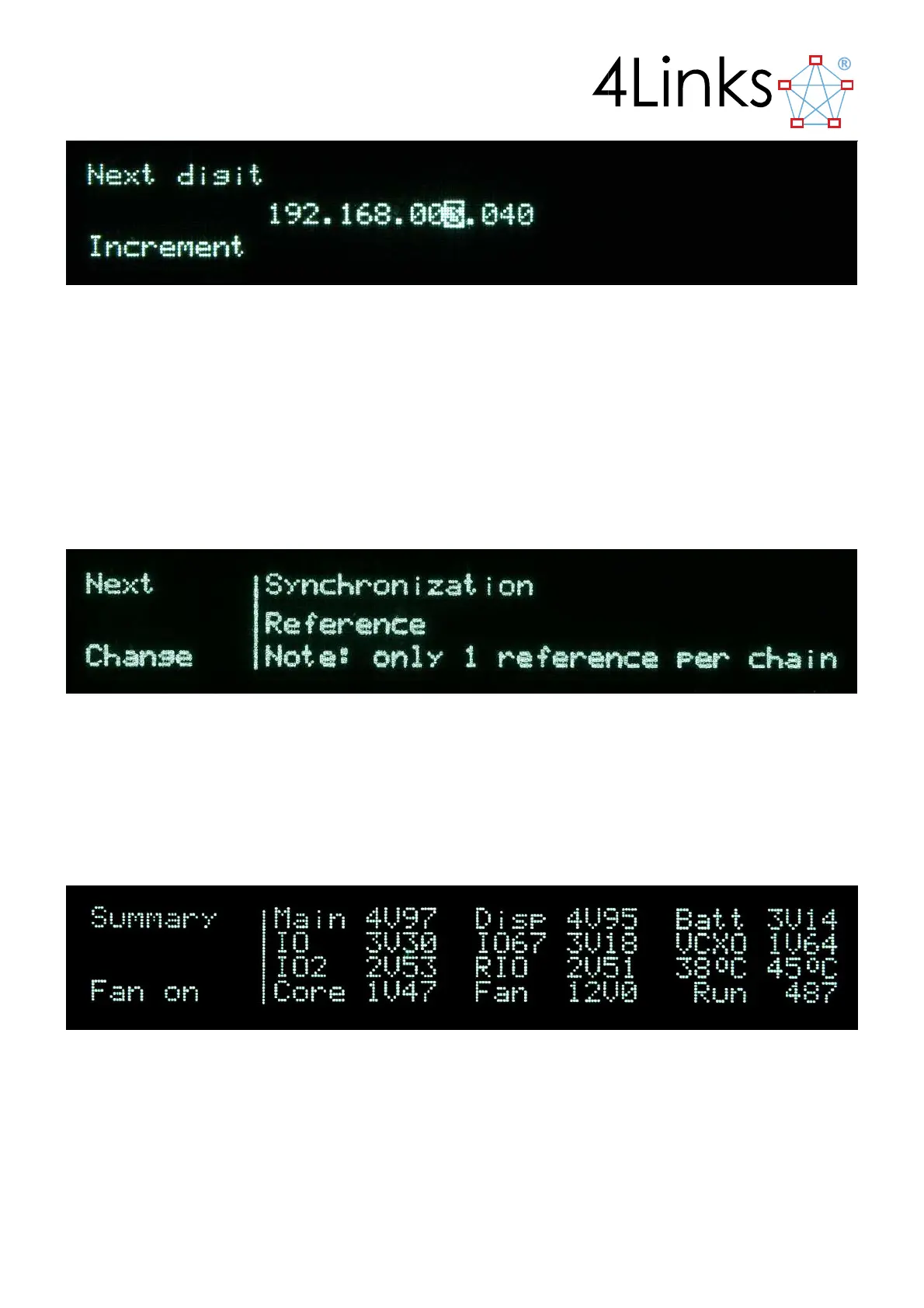

FIGURE 6-5 THE IP ADDRESS DISPLAY
6.2 Time Synchronisation
This dialogue allows the selection of three settings for the time synchronisation between
EtherSpaceLink units:
Synchronise to another unit’s reference time;
Provide the time reference source for other units;
Remain isolated and generate time tags locally.
For further details, see section 15, “Unit-to-Unit Time-Tag Synchronisation”.
FIGURE 6-6 THE TIME SYNCHRONISATION DISPLAY
6.3 Health Display
The Health Display provides a frequently-updated view of the important temperatures and voltages in this
EtherSpaceLink unit.
It is possible to toggle the fan between an automatic mode, when it operates as necessary, and a permanently
enabled mode, when it operates continuously.
FIGURE 6-7THE HEALTH DISPLAY
