2. Demonstration Setup

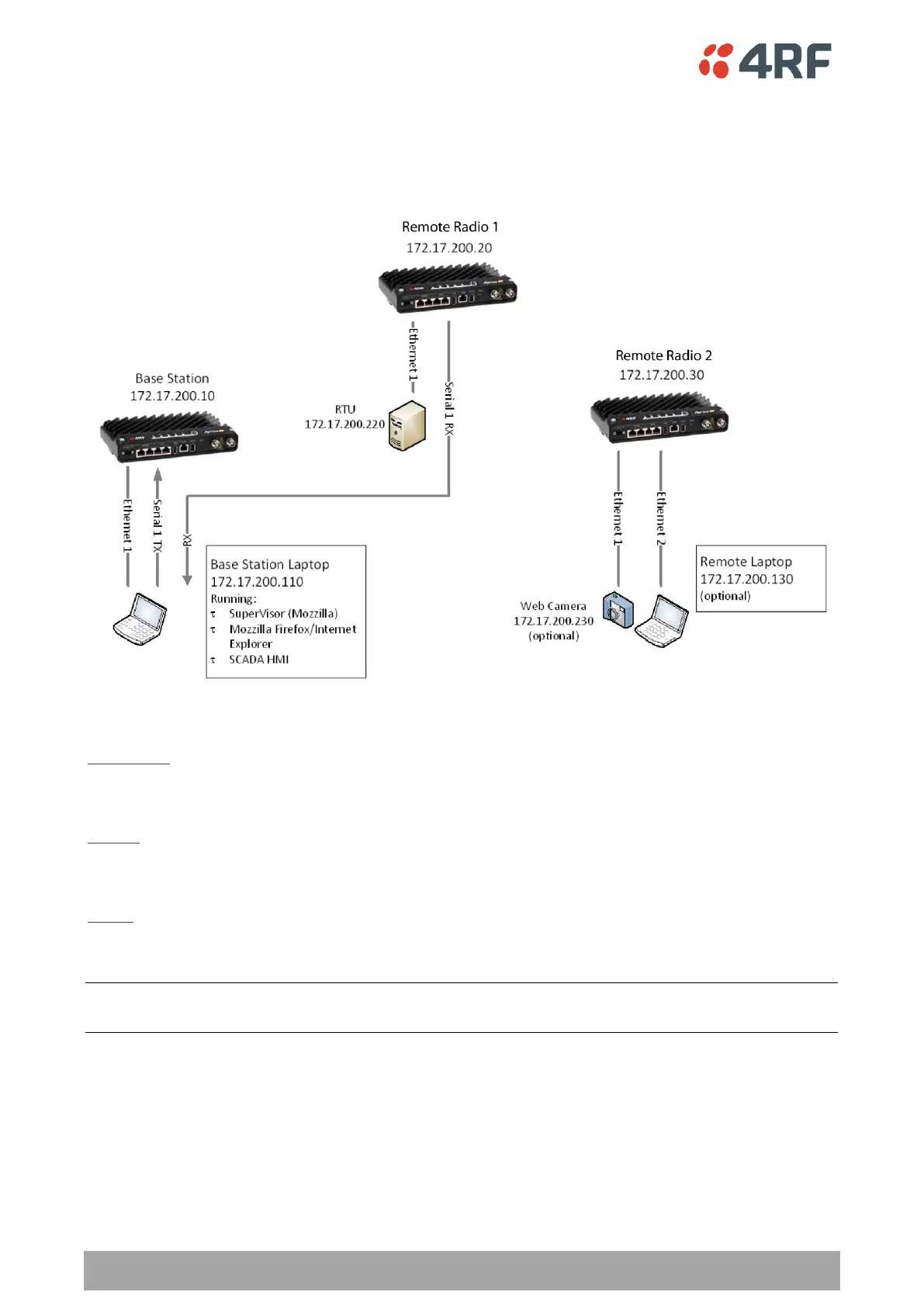

The following is a typical demonstration setup:
When setting up the equipment for testing, note the following:
Attenuators
In a bench setup, there should be 60 - 80 dB at up to 1 GHz of 50 ohm coaxial attenuation, capable of
handling the transmit power of +37 dBm (5 W) between the radios’ antenna connectors.
Splitter
The splitter should be 50 ohm coaxial up to 1 GHz and capable of handling the transmit power of +37 dBm
(5 W).
Cables
Use double-screened coaxial cable that is suitable for use up to 1 GHz at ≈ 1 metre.
CAUTION: Do not apply signals greater than +10 dBm to the antenna connection as they can damage the
receiver.
