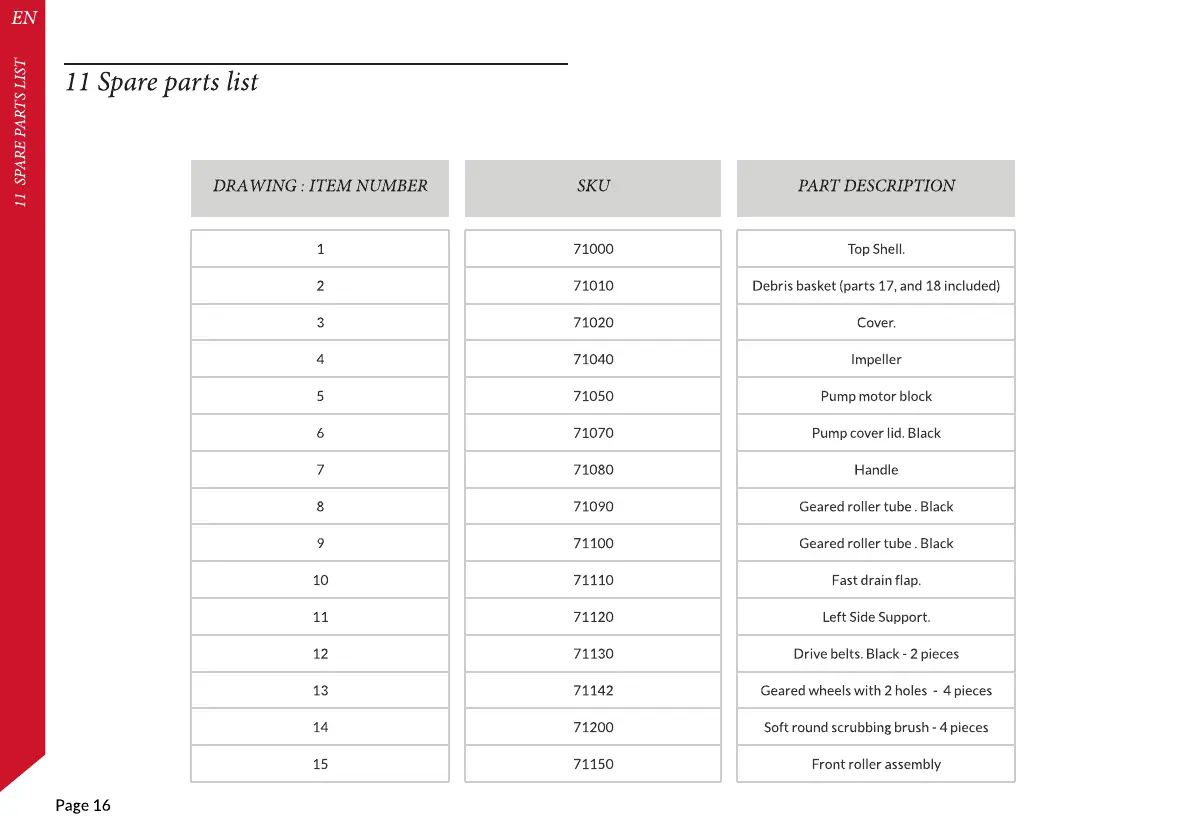

DRAWING : ITEM NUMBER SKU PART DESCRIPTION
11 Spare parts list
11 SPARE PARTS LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
71000
71010
71020
71040
71050
71070
71080
71090
71100
71110
71120
71130
71142
71200
71150
Top Shell.
Debris basket (parts 17, and 18 included)
Cover.
Impeller
Pump motor block
Pump cover lid. Black
Handle
Geared roller tube . Black
Geared roller tube . Black
Fast drain flap.
Left Side Support.
Drive belts. Black - 2 pieces
Geared wheels with 2 holes - 4 pieces
Soft round scrubbing brush - 4 pieces
Front roller assembly
