17
WIRING DIAGRAMS
The water heater’s electrical components are pictured and identied on page 7. The following describes the heater circuits and
includes wiring diagrams. All heater circuits are designed for 60/50 hertz alternating current. The water heater circuit wiring is
12 AWG, AWM, or TEW type, rated 600 volts, 105°C. Fusing consists of three 30 amp fuses for each contactor. Fusing is an
optional feature for Canadian models.

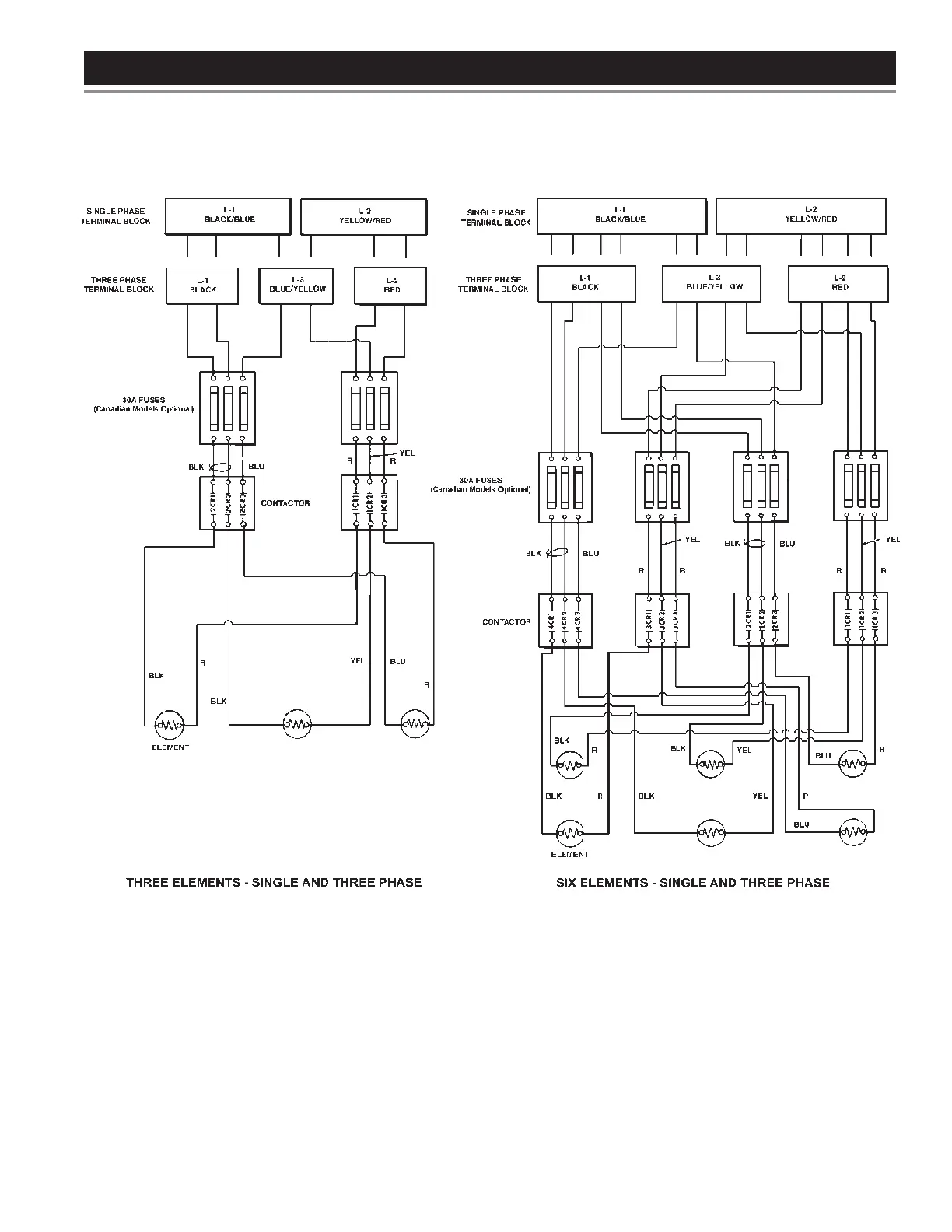

Figure 6. Power Circuit Diagrams - Electronic Control Models
