(1) Heat pump performance is the mean performance under condition “20 (dry bulb) / 15 (wet
bulb) ć ambient temperature and 15ć to 55ć water temperature”.
(2) The parameters in parentheses are for one heating element operation mode.
(3) Sound Pressure Level@1m.
2.2 CAHP-120 Physical and Technical Specifications

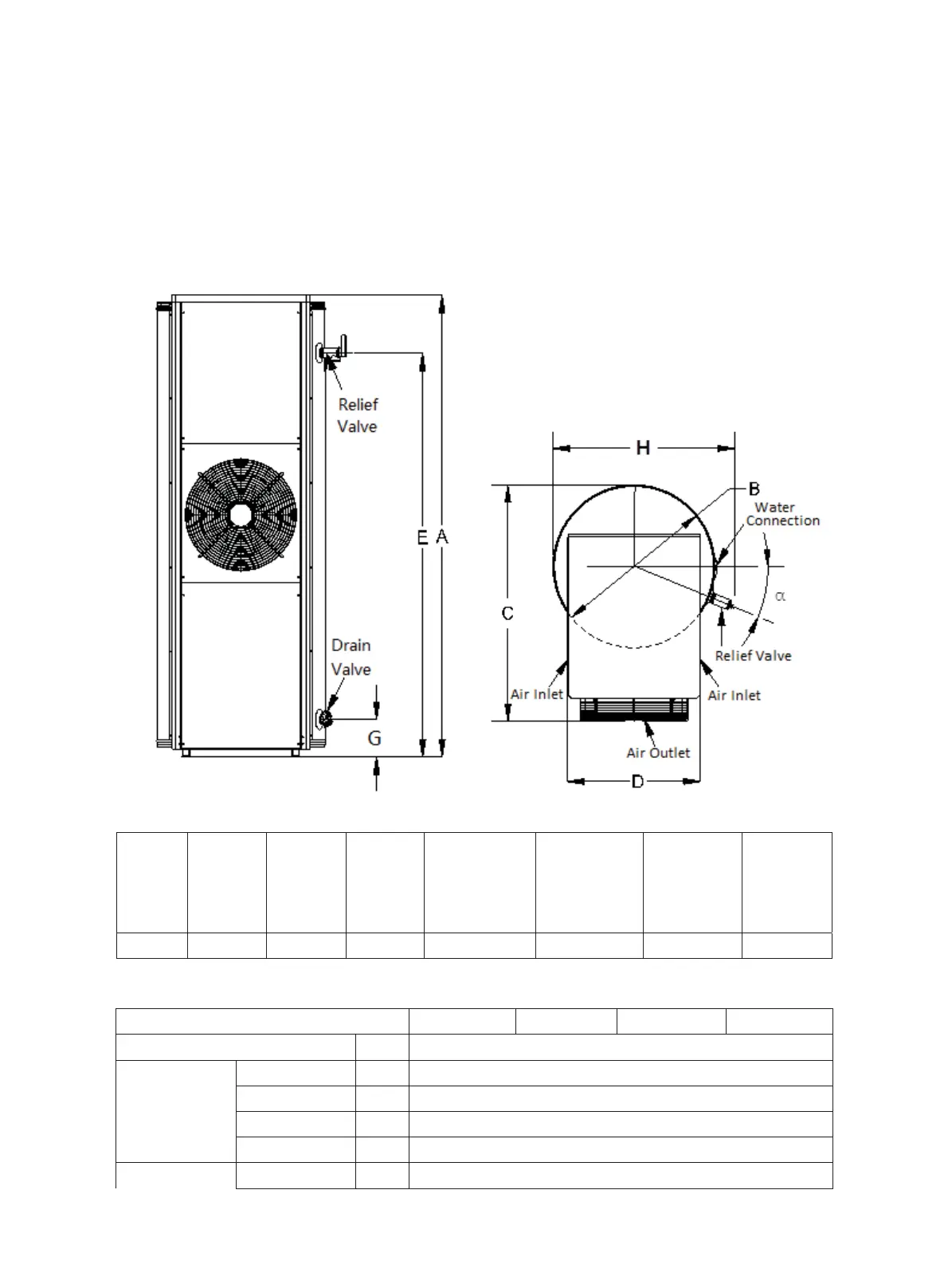

Figure 2.3 Figure 2.4
Table 2.3 Physical Dimensions
Total
Height
A (mm)
Tank
Diameter
B (mm)
Maximum
Depth
C (mm)
Service
Panel
Width
D (mm)
Relief Valve
and Water
Outlet Height
E (mm)
Drain Valve
and Water
Inlet Height
G (mm)
Relief Valve
Angle Į (°)
Maximum
Width
H (mm)
1700 711 1002 503 1467 144 22 770
Table 2.4 Technical Specifications
Model Number CAHP-120-6 CAHP-120-8 CAHP-120-10 CAHP-120-12
Model Type / Outdoor Integrated Heat Pump Water Heater
HP Rated
Power
(1)
380V/3N/60Hz kW 1.25
220V/1N/60Hz kW 1.25
400V/3N/50Hz kW 0.98
230V/1N/50Hz kW 0.98
HP Rated 380V/3N/60Hz kW 4.13
