A.O. Smith CYCLONE Xi BTH 500A Parts List

5
BTH 300A BTH 400A BTH 500A
Item Description 100/101 100/101 100/101
1 ......... Gasket 8" ............................................................ 9006095205 .................. 9006095205 ..................9006095205
2 ......... Shield - Heat ....................................................... 9006096205 .................. 9006096205 ..................9006096205
3 ......... Gasket - Insulation .............................................. 9006097205 .................. 9006097205 ..................9006097205
4 ......... Flange - Burner ................................................... 9006098205 .................. 9006098205 ..................9006098205
5 ......... Burner Assembly ................................................ 9006099205 .................. 9006099205 ..................9006099205
6 ......... Gasket - Burner .................................................. 9006100205 .................. 9006100205 ..................9006100205
7 ......... Ignitor .................................................................. 9006101205 .................. 9006101205 .................. 9006101205
8 ......... Window - Observation ........................................ 9006102215 .................. 9006102215 ..................9006102215
9 ......... Gasket - Viewport ............................................... 9006103215 .................. 9006103215 ..................9006103215
10 ........ Screw - Socket Head Cap .................................. 9006104215 .................. 9006104215 ..................9006104215
11 ........ Blower/Motor ...................................................... 9006105205 .................. 9006114205 .................. 9006114205
12 ........ Sensor - Flame ................................................... 9006106205 .................. 9006106205 ..................9006106205
13 ........ Coupling - Power Vent ........................................ 9006107205 .................. 9006107205 ..................9006107205
14 ........ Blower Intake Reducer Assembly ....................... 9006108205 .................. 9006108205 ..................9006108205

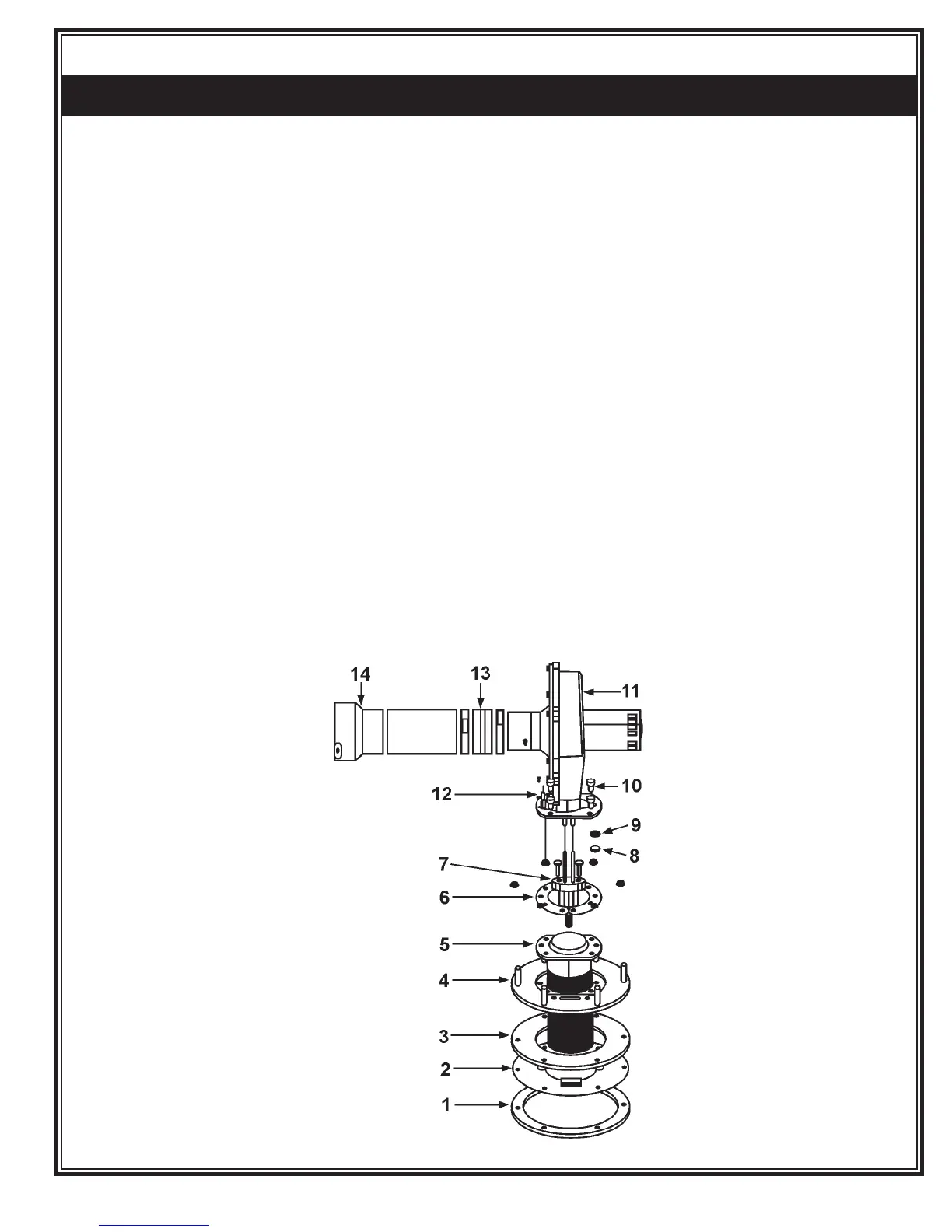

BLOWER/BURNER ASSEMBLY
Standard hardware items may be purchased locally.
