CYCLONE Xi COMMERCIAL GAS WATER HEATER
BTH 120 thru 500 SERVICE HANDBOOK
A.O. Smith – Technical Training Department 35 Ashl
and City, Tennessee © 2009
Servicing should only be performed by a Qualified Service Agent 316586-000

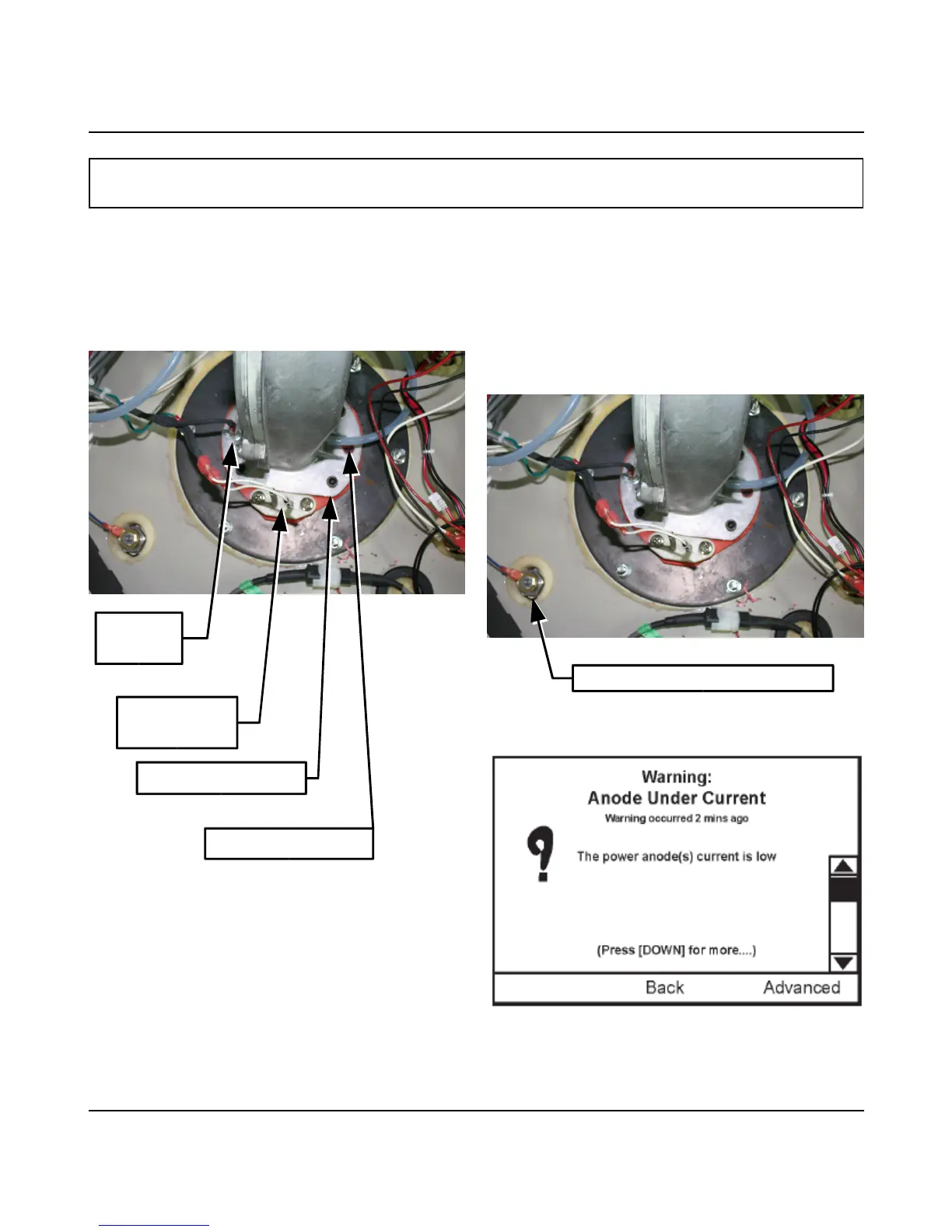

CONTROLS – CONNECTIONS, IGNITER, FLAME SENSOR, SIGHT GLASS, POWERED
ANODES
The connections for the hot surface igniter
and the flame sense rod are shown below.
Also shown is the burner sight glass. These
features are typical for all models.
The new Cyclone Xi commercial water heater
is equipped with powered anodes. These
anodes never need replacement. The CCB
monitors the current through the anodes and
will declare a fault if there is a disconnected
wire or if there is no water in the tank.
Flame
Sensor
Burner sight glass
Powered anode connection
Hot Surface
Igniter
Mounting Bolts
