8

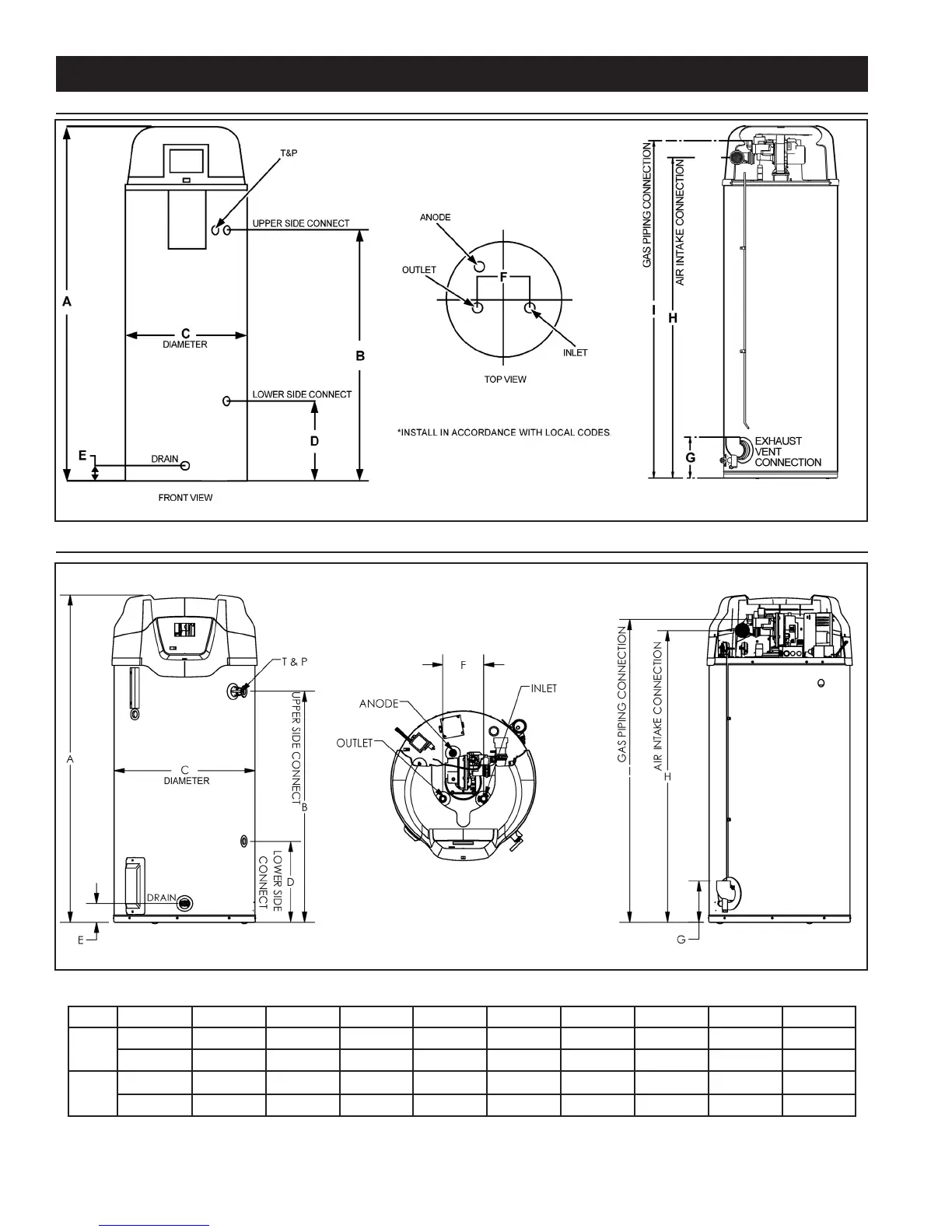

DIMENSIONS AND CAPACITY DATA
ROUGH IN DIMENSIONS: 50 GALLON UNIT
Figure 1A: DIMENSIONS FOR 75 GALLON UNIT
ROUGH IN DIMENSIONS: 75 GALLON UNIT
Figure 1: DIMENSIONS FOR 50 GALLON UNIT
Table 1 – ROUGH-IN-DIMENSIONS
Units A B C D E F G H I
50G
Inches 66.75 49.25 22.00 15.75 3.00 8.00 8.00 62.00 65.00
cm 169.5 125.09 55.88 40.00 7.62 20.32 20.32 157.48 165.1
75G
Inches 64.71 45.64 27.75 16.00 3.71 8.00 7.93 57.36 58.98
cm 164.4 115.9 70.5 40.6 9.4 20.3 20.1 145.7 149.8
Top Inlet and Outlet: 50G - 3/4” NPT; 75G - 1” NPT
Side Inlet and Outlet: 3/4” NPT
Gas Inlet: 1/2” NPT
