GET TO KNOW YOUR WATER HEATER REPLACEMENT PARTS
Replacement parts may be ordered through authorized servicers
or distributors. When ordering parts, provide complete model
and serial numbers (see rating plate), quantity and name of part
desired (as listed in Figure 1). Standard hardware items may be
purchased locally.
ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMER.

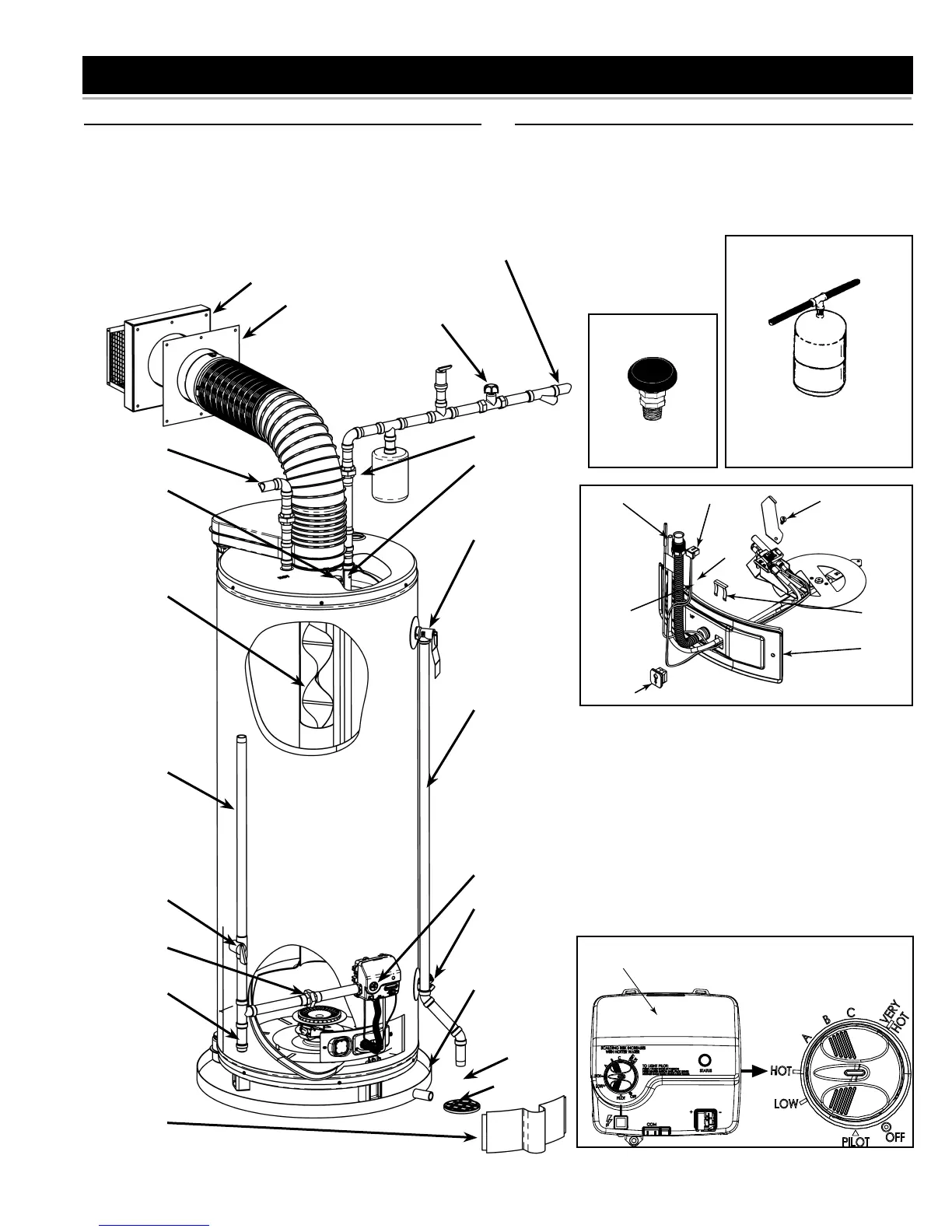

FIGURE 1
VACUUM RELIEF
VALVE
INSTALL PER
LOCAL CODES.
THERMAL
EXPANSION TANK
INSTALL THERMAL EXPANSION
TANK IF WATER HEATER IS
INSTALLED IN A CLOSED
SYSTEM.
List of status codes are shown
at top of gas control valve/thermostat.
FLUE BAFFLE
GAS SUPPLY
LINE
MAIN MANUAL
GAS SHUTOFF
VALVE
GROUND-JOINT
UNION
SEDIMENT
TRAP (DIRT
LEG)
ANODE
HOT WATER
OUTLET PIPE
UNION
INLET DIP
TUBE
TEMPERATURE
AND PRESSURE
RELIEF VALVE
DISCHARGE PIPE
(DO NOT CAP OR
PLUG)
GAS CONTROL
VALVE/
THERMOSTAT
DRAIN VALVE
METAL
DRAIN PAN
FLOOR DRAIN
OUTER DOOR
INLET VALVE
COLD WATER
INLET PIPE
TRIM PLATE
(OUTSIDE)
TRIM PLATE
(INSIDE)
6” MAXIMUM
AIR GAP
TYPICAL INSTALLATION
PILOT
TUBE
THERMOPILE
CONNECTOR
PILOT / THERMOPILE
ASSEMBLY SCREW
RETAINER
CLIP
WHITE
WIRE
MANIFOLD
COMPONENT
BLOCK
MANIFOLD
DOOR
BURNER AND OTHER
FITTINGS NOT SHOW
FOR CLARITY.
IGNITER
WIRE
