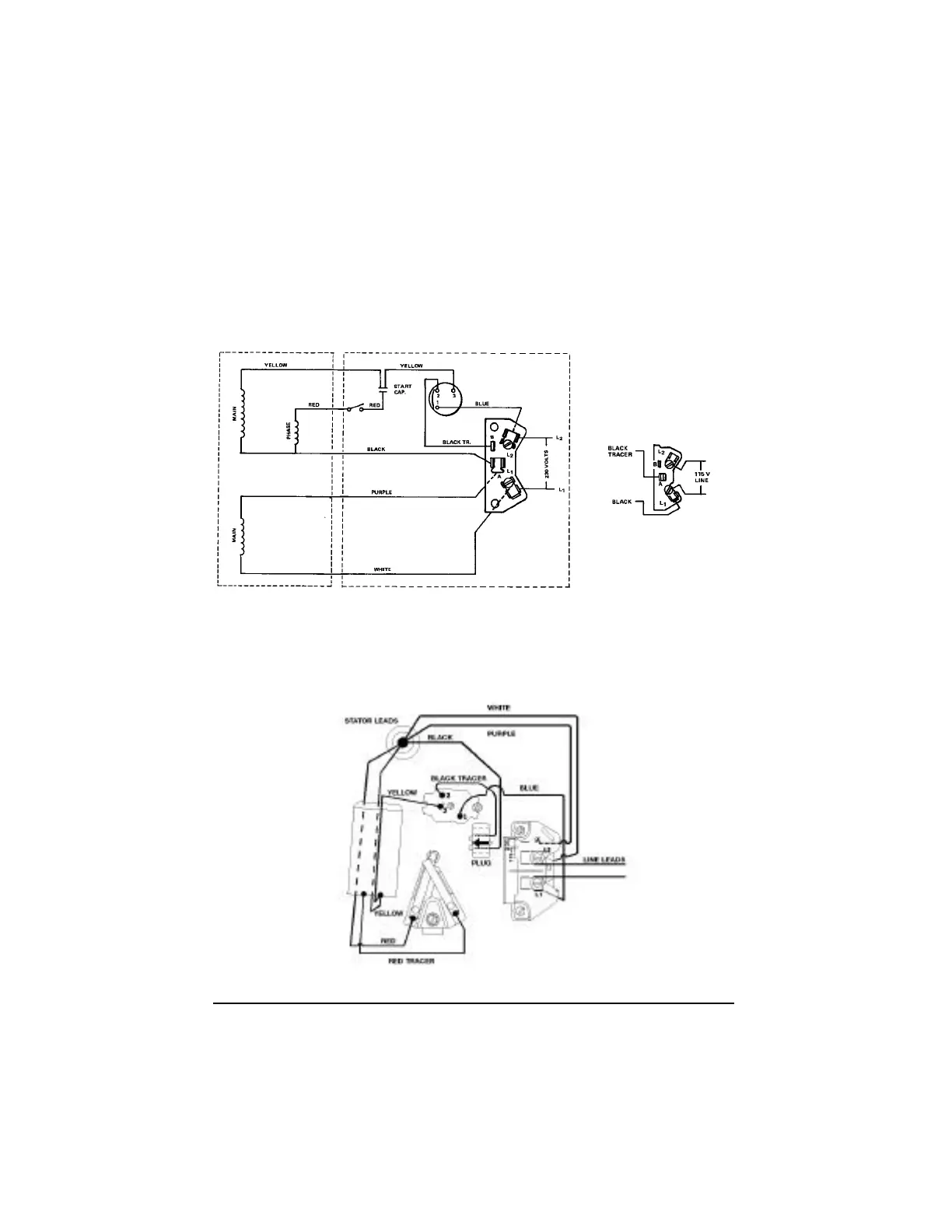

SINGLE SPEED MOTOR — TYPICAL SCHEMATIC DIAGRAMS
Capacitor Start
Induction Run — Single Speed
EXT. & WIRE ROUTING
Dual Voltage — Single Speed — Capacitor Start
With Voltage Change Plug
