BEARING INFORMATION TABLE
1. Only use bearings obtained from A.O.Smith
and ordered by the proper A.O.Smith part
number. Do not substitute other bearings, or
reuse bearings which have been pulled from
shafts. Bearings obtained from A.O.Smith
are built with balls having a specific fit,
checked for sound level and filled with high
grade grease for the temperature and service
conditions.
2. Replacement instructions show how the bear-
ing installation tube is used to install new
bearings.
RECOMMENDED TOOLS
Bearing Installation Tube Dimensions
(In Inches)
2
Bearing Dimensions
A.O. Smith
Bearing
Part No.
1
Outer
Diameter
of Tube
Wall
Thickness
Minimum
Length
Bearing
Size
Width
(Inches)
Diameter (Inches)
Inside Outside
202-16
203
204
304
205
.6299
.6693
.7874
.7874
.9843
1.3780
1.5750
1.8504
2.0472
2.0472
.4331
.470
.5512
.5906
.5706
610358-1
604005-4
600269-2
603628-2
612096-1
7/8
1
1-1/4
.095
.095
.125
3
3
3
EXTERNALRING PLIER
SNAP-ON TOOLS
MODELNO. PRS 22 OR EQUAL
TRU-ARC PLIERS

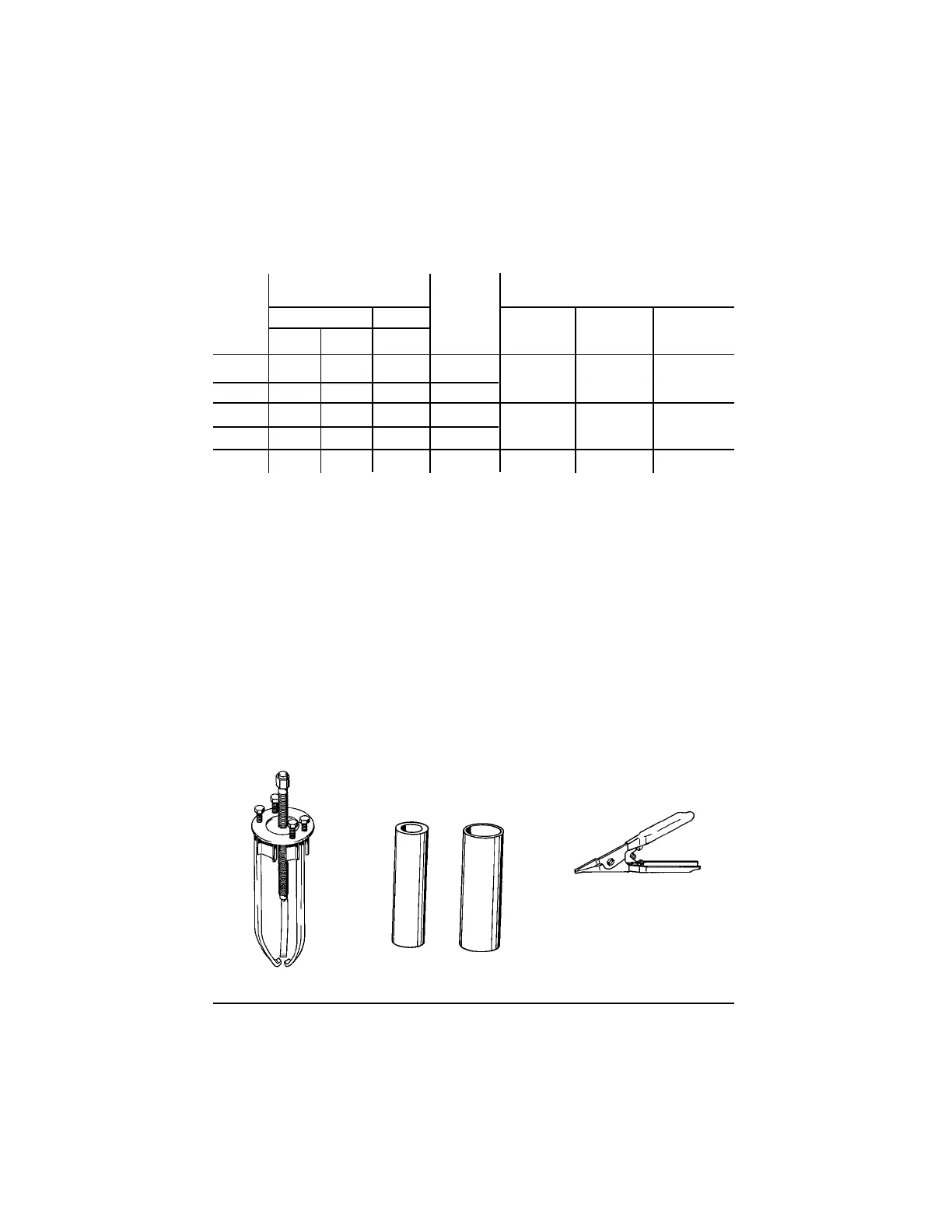

BEARING INSTALLATION TOOLS
BEARING PULLER SNAP-ON
TOOLS
MODEL NO. CG-250 OR EQUAL
