A.O. Smith ST1302 - 2-Speed Motors High Speed Schematic Diagram (Remote Switch Operation)

44 Pump Motors
Level 2 A.O.Smith

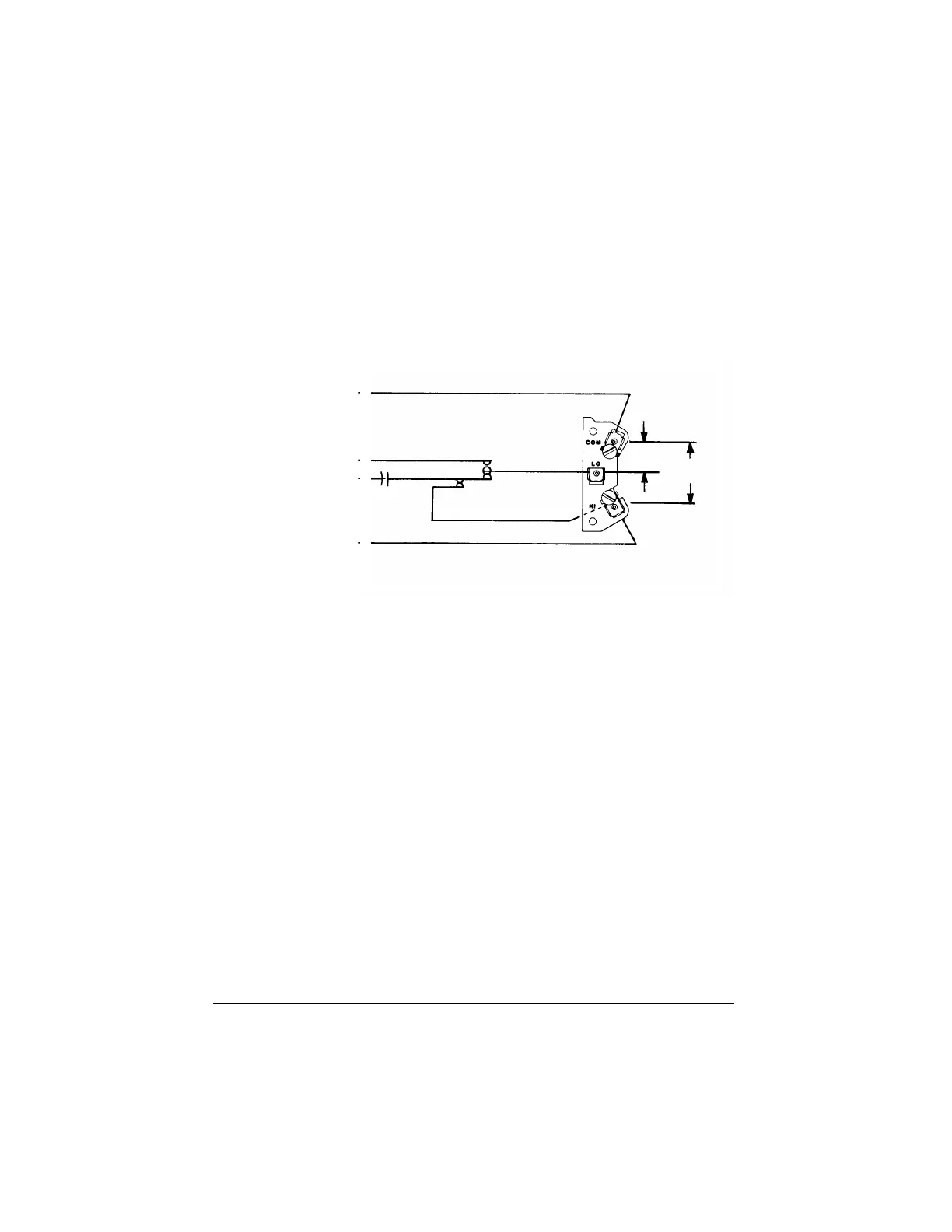

2-SPEED MOTORS — HIGH SPEED START
SCHEMATIC DIAGRAM
2-Speed for Remote Switch Operation
LINE VOLTS
(HIGH SPEED)
LINE VOLTS
(LOW SPEED)
BLACK
YELLOW
START - X & Y CLOSED Z
OPEN
RUN - X & Y OPEN Z CLOSED
BLACK
RED
CAPACITOR
START
HI
Y
X
WHITE
Z
