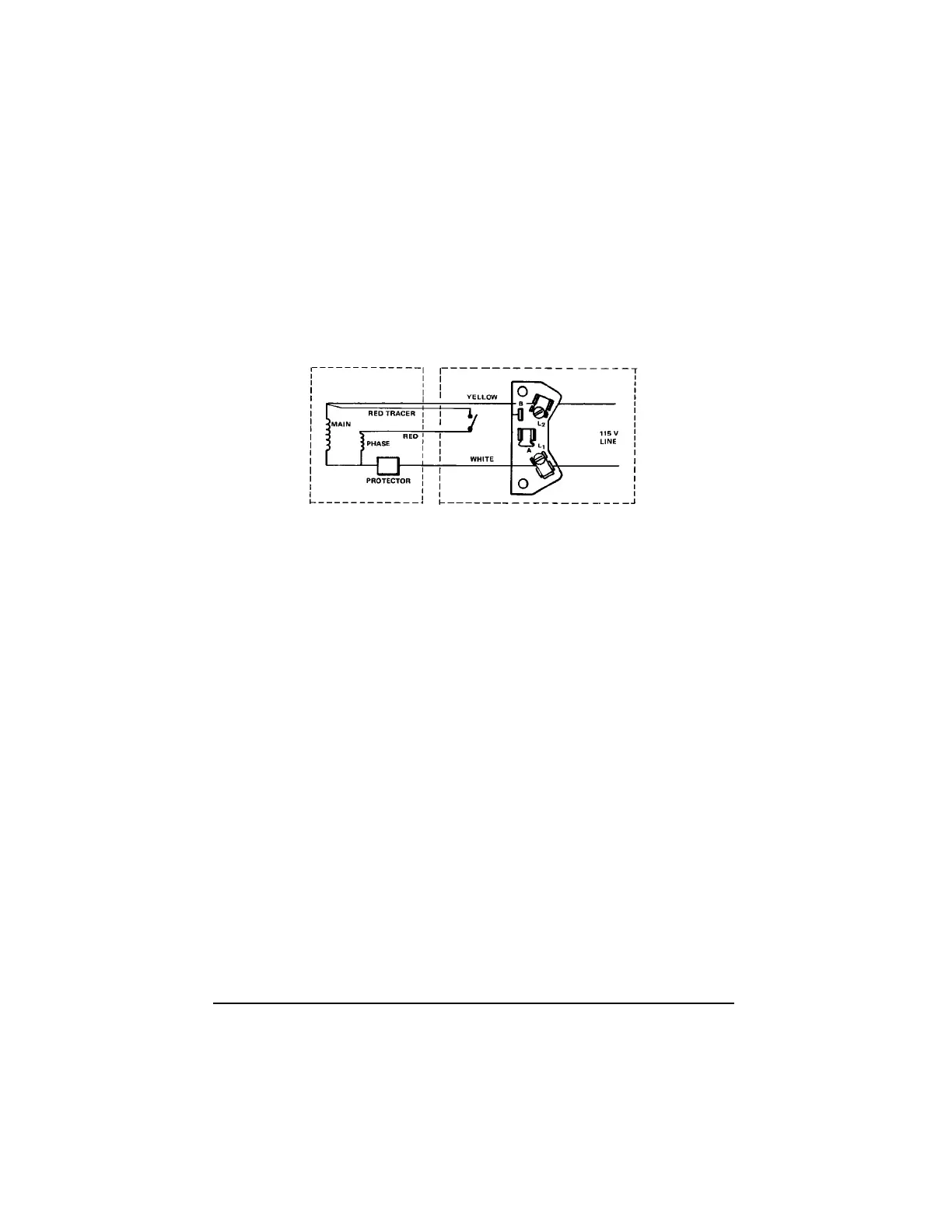

SINGLE SPEED MOTOR — TYPICAL SCHEMATIC DIAGRAMS
Capacitor Start* or Split Phase
Single Voltage on Winding Protector
*Capacitor not shown in schematic.
SWITCH
