2-13
Chapter 2: Motherboard information
2. AT Mode (ATMODE)
ATMODE 1-2
ATXMODE 2-3
3. COM1 Ring/+5V/+12V selection (COM1_VSET1)
+12V 1-2
+5V 3-4
Ring 5-6

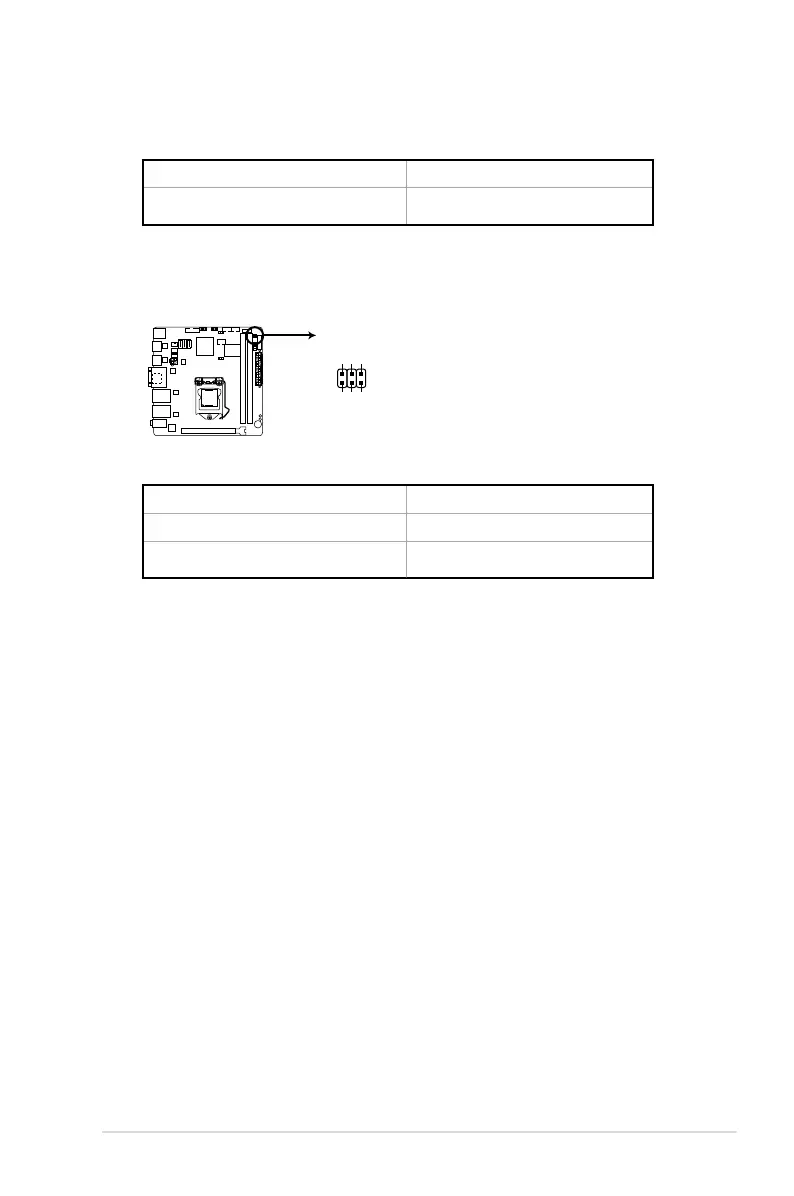

EMB-B75A COM VSET connectors
PIN 1
+12V +5V RI
+12V
+5V
RI
Com1_Vset1
