2-23
Chapter 2: Motherboard information

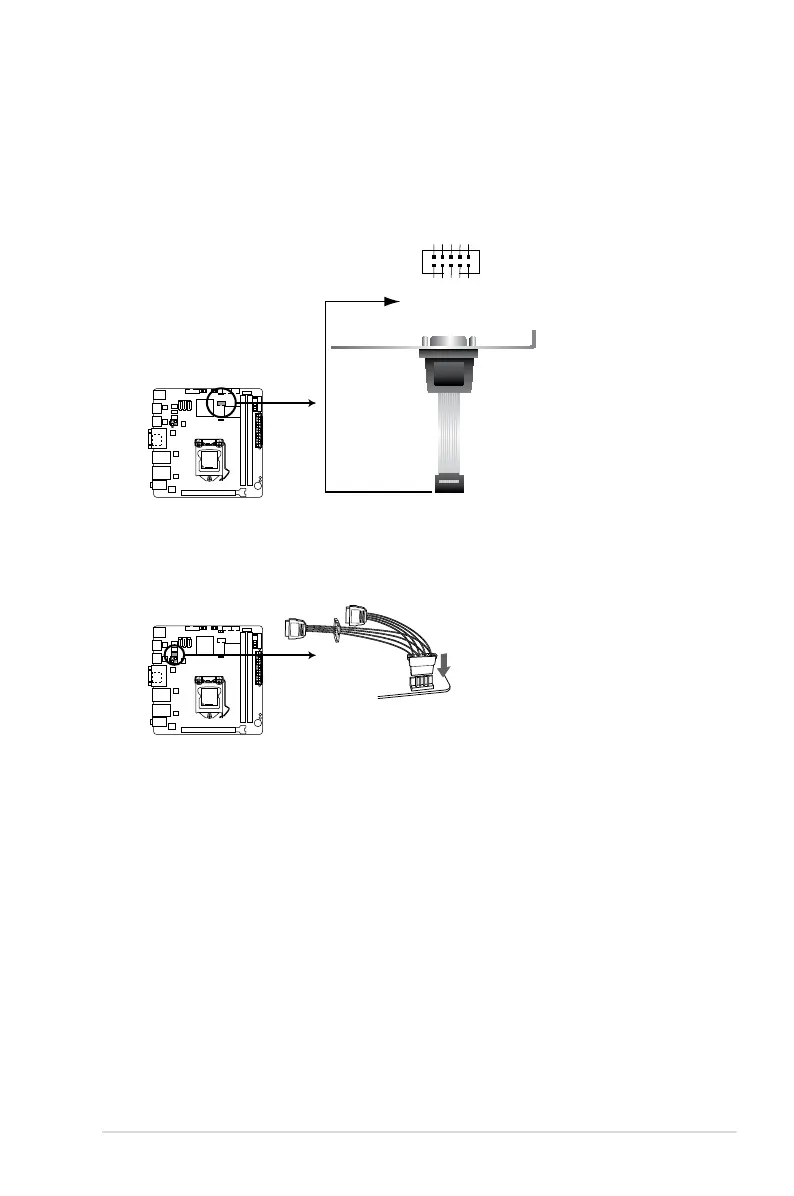

9. DIO connector
EMB-B75A DIO connector
PIN 1
DIO1
DIO_I#1 (GP22)
DIO_I#3 (GP64)
DIO_O#1 (GP36)
DIO_O#3 (GP35)
+V5S
DIO_I#2 (GP47)
DIO_I#4 (GP16)
DIO_O#2 (GP34)
DIO_O#4 (GP12)
GND
EMB-B75A SATA_POWER connector
10. SATA power connector (SATA_POWER)
