RotoClone® W

this document contains, without permission of American Air Filter

Company, Inc., is prohibited. RotoClone, AAF, REDClean, REDFiltration,

and Reliable Efficient Durable are registered trademarks of American Air

Filter Company, Inc. d/b/a AAF International.

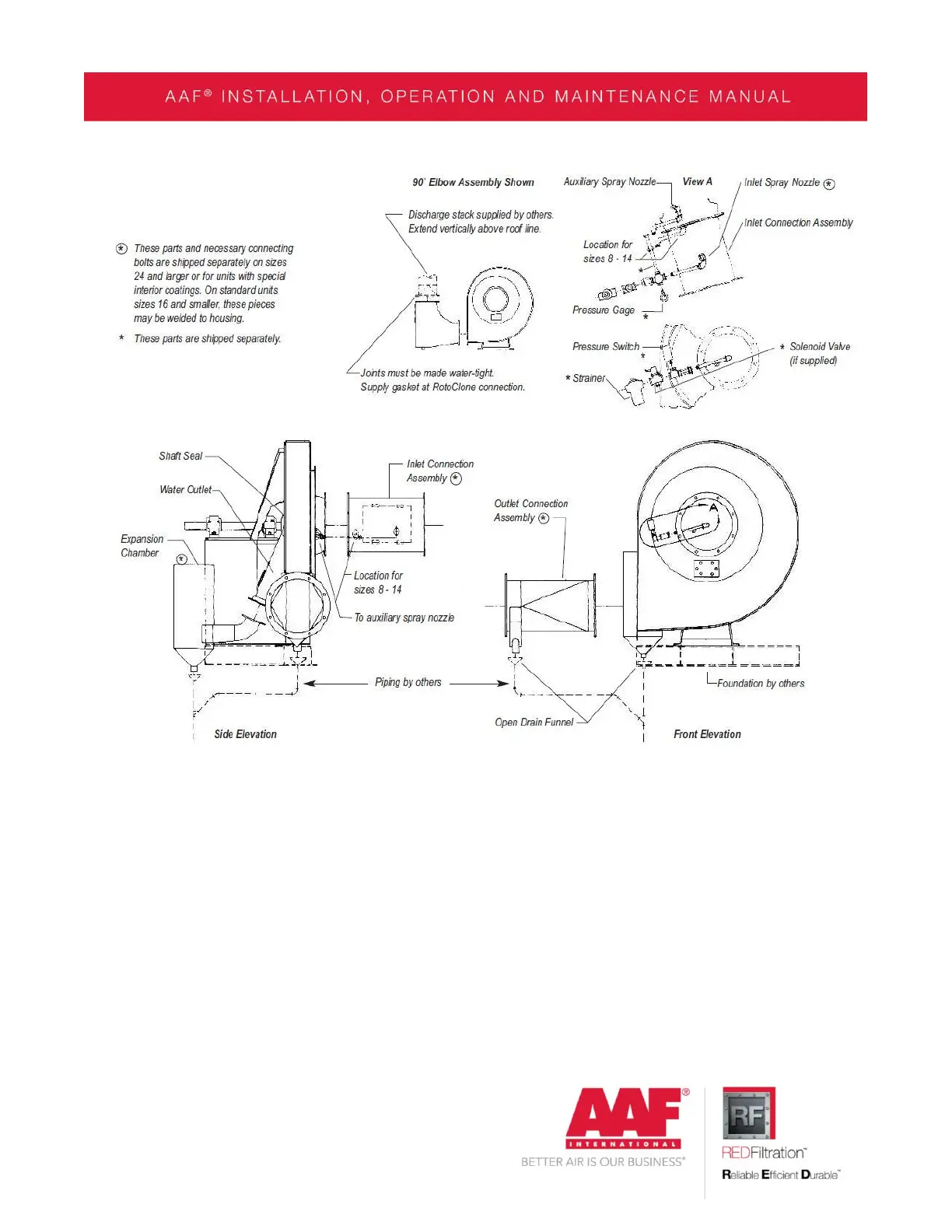

Figure 2. Installation Diagram

9.2.2 Arrangement D

Refer to Arrangement D Erection Diagram - Figure 3. Assembly should

proceed in the following manner, using gaskets and bolts included with shipment

for each joint. Some RotoClone, sizes 16 and smaller, may have inlet, outlet, and

expansion chamber welded to housing in lieu of flanged and bolted connections.

1. Place hopper section on foundation and anchor.

2. Bolt pre-cleaner section to hopper top. (Note: On RotoClone sizes 8

through 20, the hopper and pre-cleaner sections are normally shipped

assembled.)
