26 BM series

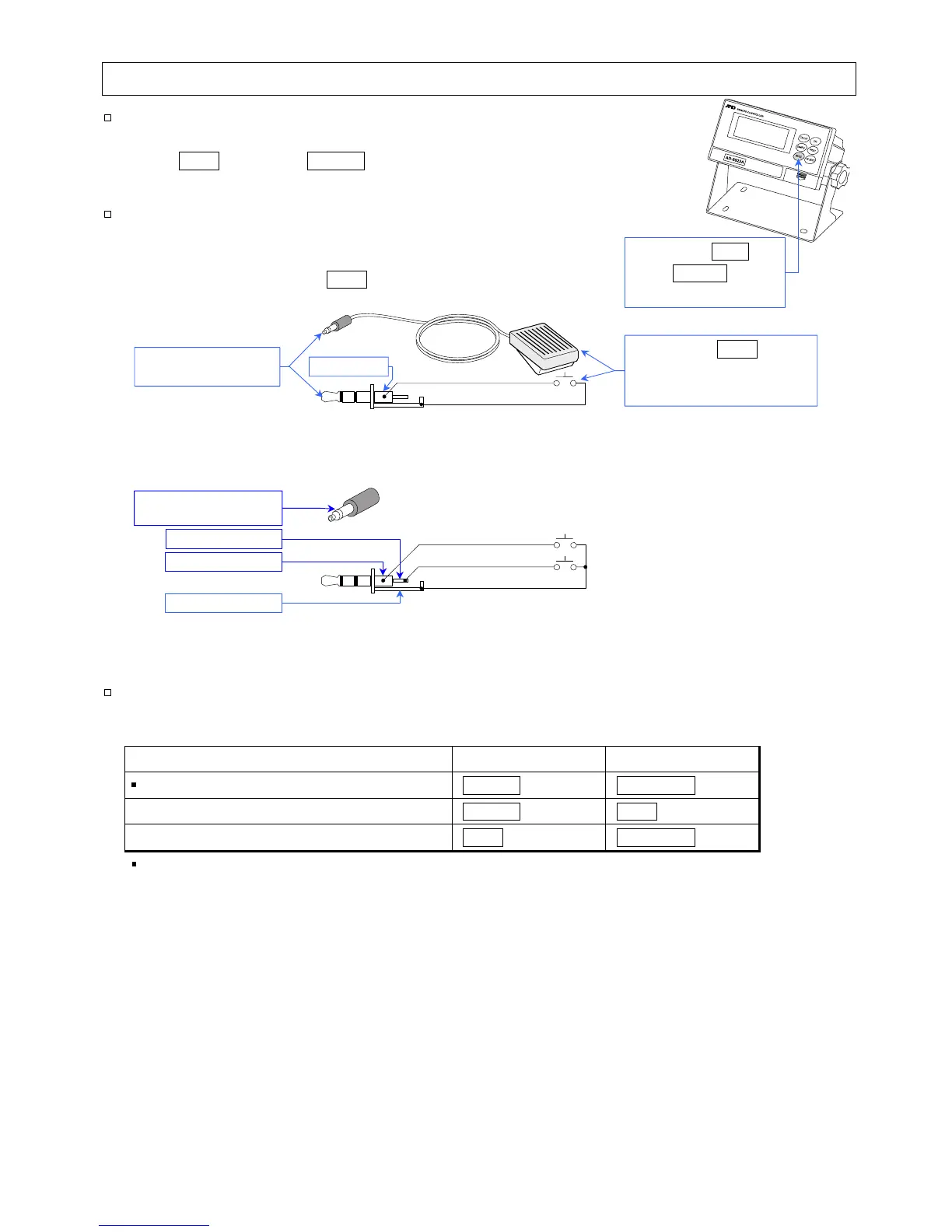

Remote Control Of The DC Static Eliminator
When specifying "on" to [AD8922A control] in the function
settings (8922 ionfnc on), the balance applies the function
of the ION key to the MODE key on the AD-8922A.
When specifying "2" to [External control input ] in the function
settings (e-5 ionfnc 2) and assembling external key plug
(AX-T-314A-S) and foot switch (AX-SW128), the balance
applies the function of the ION key to the foot switch
Example:
Description Of The External Key Plug (AX-T-314A-S) (Option)
When specifying [External control input (e-5)] in [Static eliminator (ionfnc)], the following
functions can be applied to the external key plug (AX-T-314A-S) terminals.
Static eliminator External control input Terminal 1 Terminal 2
ionfnc e-5 0 PRINT key RE-ZERO key
ionfnc e-5 1 PRINT key ION key
ionfnc e-5 2 ION key RE-ZERO key
factory settings
Applies the ION key
to the MODE key on
the AD-8922A.
Applies the ION key to
terminal 1of the foot
switch (AX-SW-123).
External key plug
(AX-T-314A-S)
Terminal 1
Line 1
GND
Terminal 2
Terminal 1
Terminal GND
Line 1
Line 2
GND
External key plug
AX
-
T
-314
A
-S
