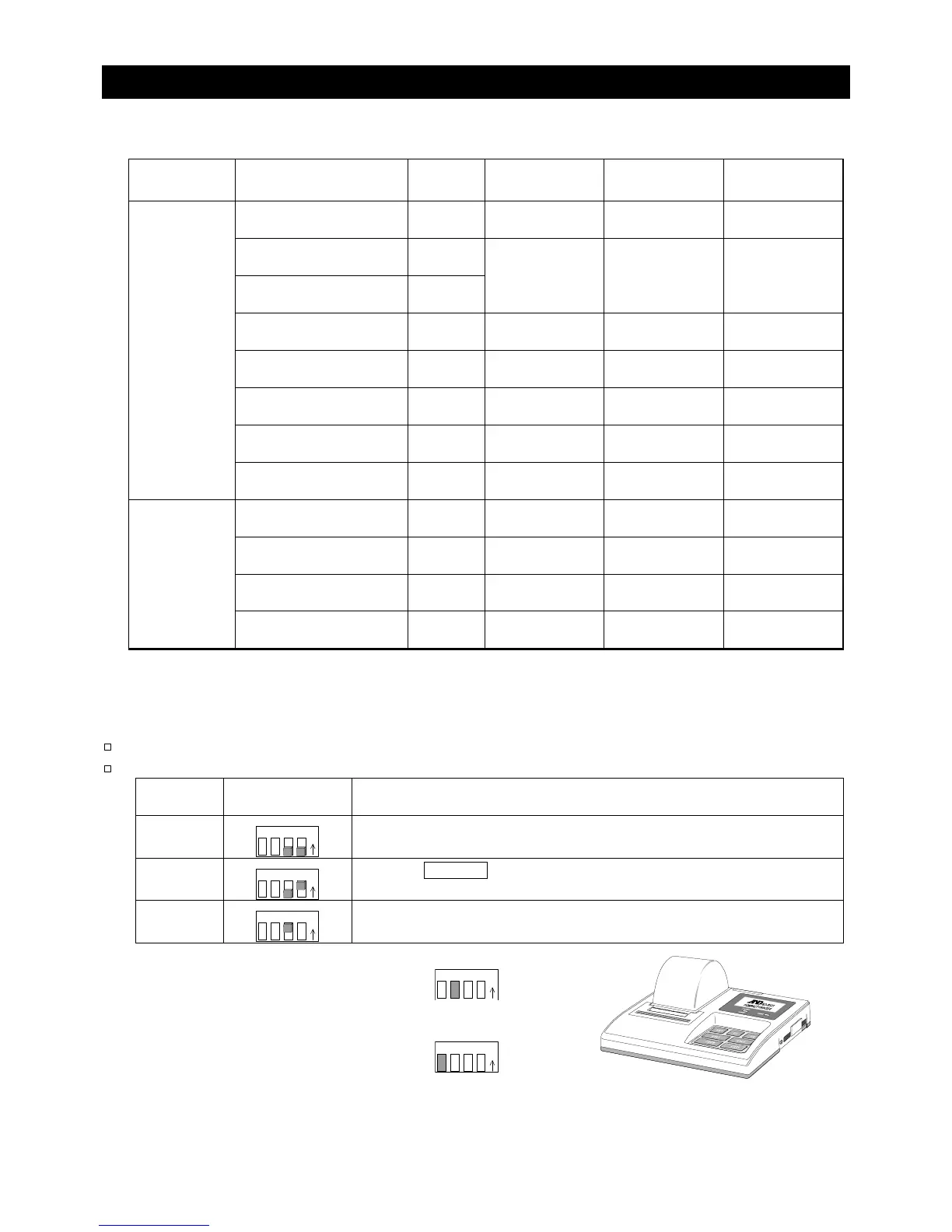

16.2. Connection To Peripheral Equipment
Connection to an AD-8121B printer
Preset the following parameters to use the AD-8121B printer.
Class Item and Parameter
Factory
settings
AD-8121B
MODE 1
AD-8121B
MODE 2
AD-8121B
MODE 3
prt
Data output mode
0 0,1,2 3 0,1,2
ap-p
Auto print polarity
0
ap-b
Auto print difference
1
#1
Not
necessary
#1
5-id
ID number output
0 off off off, on
d-no
Data number output
0 off off off, on
5-td
Time/Date output
0 0 0 0,1,2,3
pU5e
Data output pause
0 off off off, on #2
dout
Data output
at-f
Auto feed
0 off off off, on
bp5
Baud rate
2 2 2 2
btpr
Data bit, parity bit
0 0 0 0
Crlf
Terminator
0 0 0 0
5if
Serial
interface
type
Data format
0 0 0 1
#1 Set parameters when auto print mode A or B (prt 1 or 2) is selected.
#2 Set 1 when multiple lines are printed. Example: When appending ID number, set 1.
Notes
Refer to "11.2. GLP Report" concerning print samples.
Settings of AD-8121B
MODE
AD-8121B
DIP switch
Description
MODE 1
1 2 3 4
MODE
ON
Print at receiving data.
Standard mode, statistic mode
MODE 2
1 2 3 4
MODE
ON
Print by DATA key operation or built-in timer.
Standard mode, interval mode, chart mode
MODE 3
1 2 3 4
MODE
ON
Print at receiving data.
Dump print mode
DIP switch No.3 : Handling unstable data
ON Print
OFF Not printed
DIP switch No.4 : Data input specifications (Interface selection)
ON Current loop
OFF RS-232C
