78

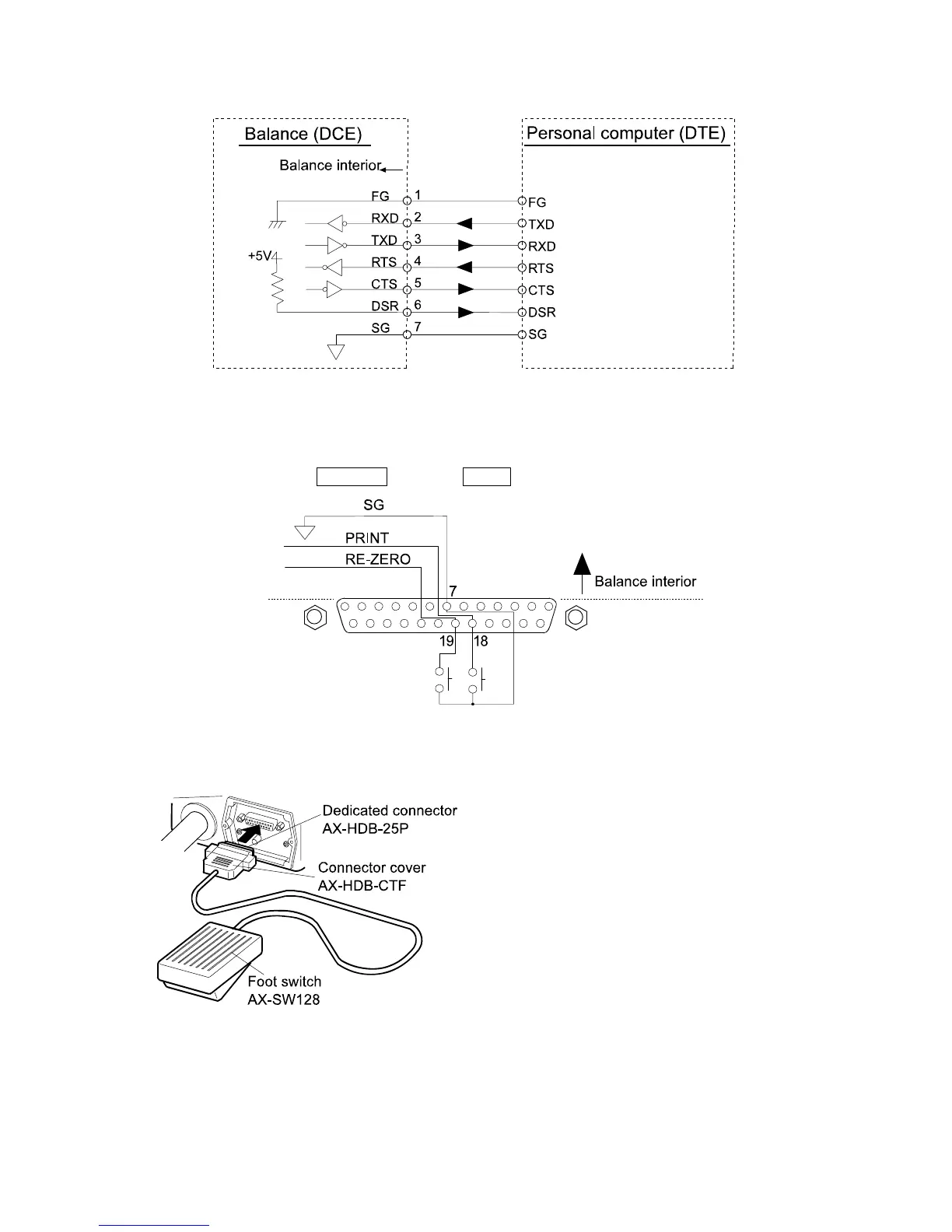

External contact input
By connecting pin 18 to pin 7, or pin 19 to pin 7, for more than 100 ms, the same operation as
performed by pressing the RE-ZERO key or the PRINT key, will be performed.
Use of example
The external input connector (AX-HDB-25P/CTF)
and the foot switch (AX-SW128) are sold separately.
