AAON SA-028 - Figure 13 - Air Conditioner Waterside Economizer Piping Kit; Figure 14 - Air Conditioner Waterside Economizer Back View

39

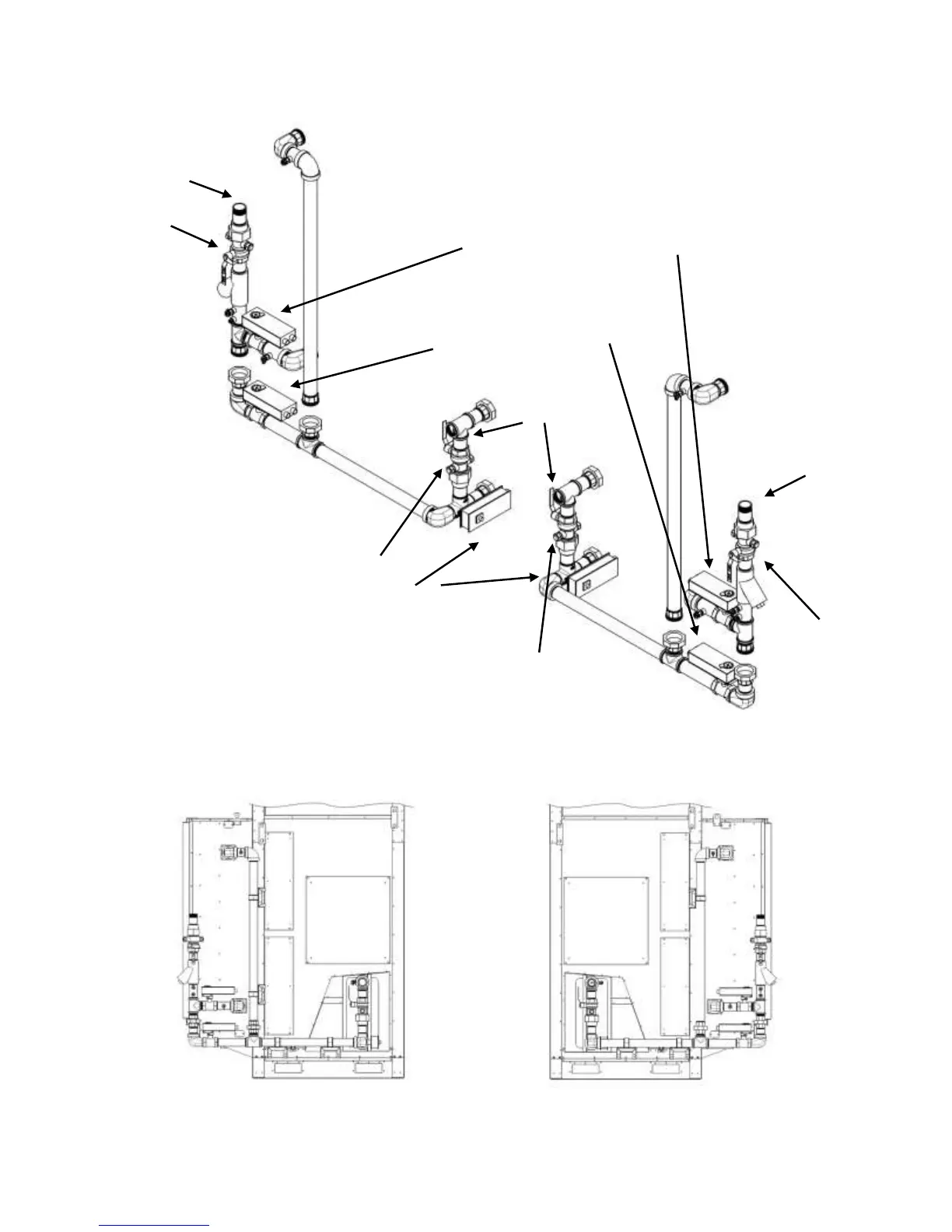

Figure 13 - Air Conditioner Waterside Economizer Piping Kit
Figure 14 - Air Conditioner Waterside Economizer Back View
Right Intake Piping Kit
Left Intake Piping Kit
Assembly 6
Assembly 1
Assembly 2
Assembly 3
Assembly 4
Assembly 5
Waterside Economizer Valve
Waterside Economizer
Bypass Valve
Head Pressure Control Valve
Supply
Connection
Supply
Connection
Return
Connection
Balancing Valve
Balancing Valve
Balancing Valve
Balancing Valve
