AAON SA-028 - Figure 15 - Water-Source Heat Pump Waterside Economizer Piping Kit; Figure 16 - Water-Source Heat Pump Waterside Economizer Back View

40

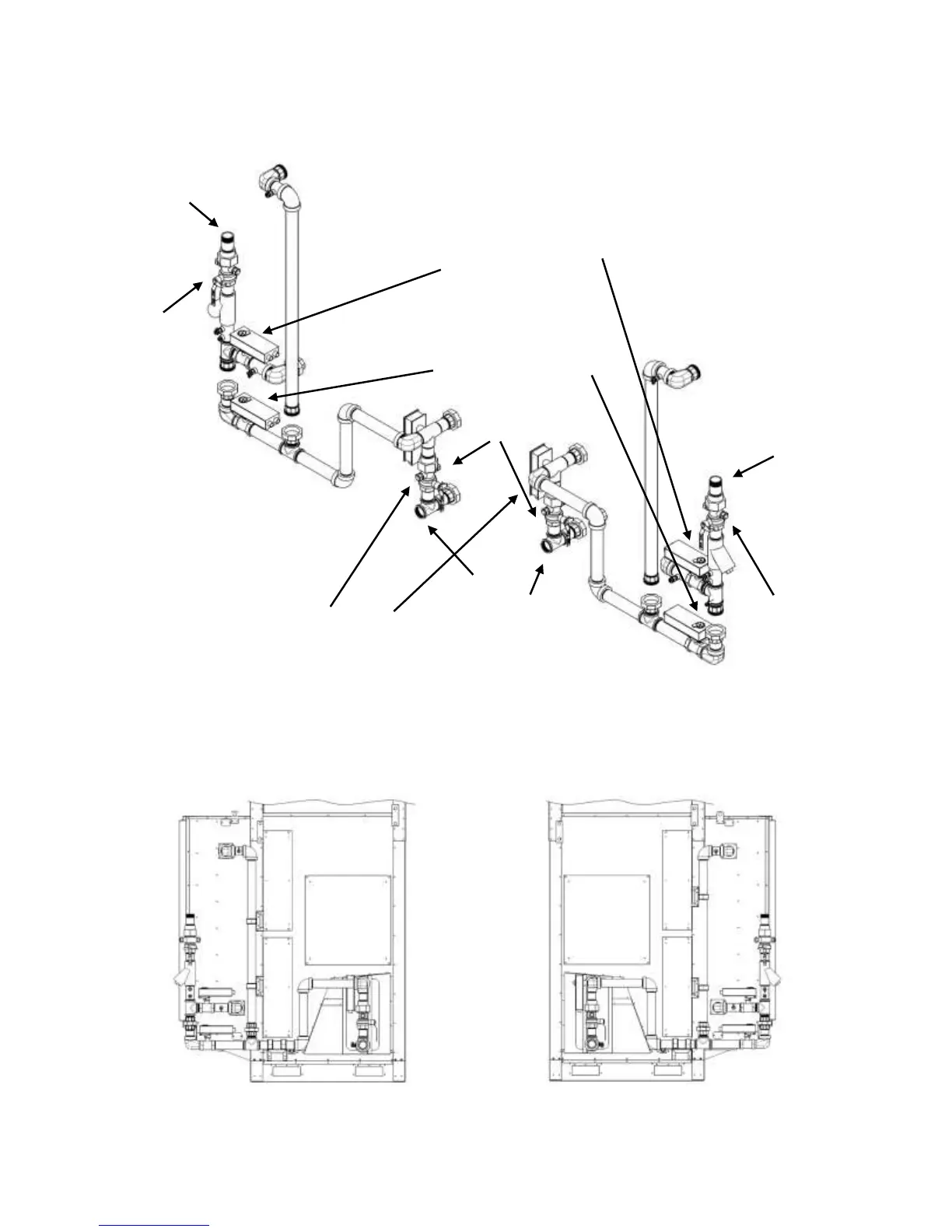

Figure 15 - Water-Source Heat Pump Waterside Economizer Piping Kit
Figure 16 - Water-Source Heat Pump Waterside Economizer Back View
Right Intake Piping Kit
Left Intake Piping Kit
Assembly 6
Assembly 1
Assembly 2
Assembly 3
Assembly 4
Assembly 5
Waterside Economizer Valve
Waterside Economizer
Bypass Valve
Head Pressure Control Valve
Supply
Connection
Supply
Connection
Return
Connection
Balancing Valve
Balancing
Valve
Balancing Valve
