3. Connection with Other Device
The following diagram shows you the connections among receiver, TV, LNB and
other equipment, please read this first if you are not sure about the connection,
and it will guide you to the correct connection.
3.1 Connecting to TV

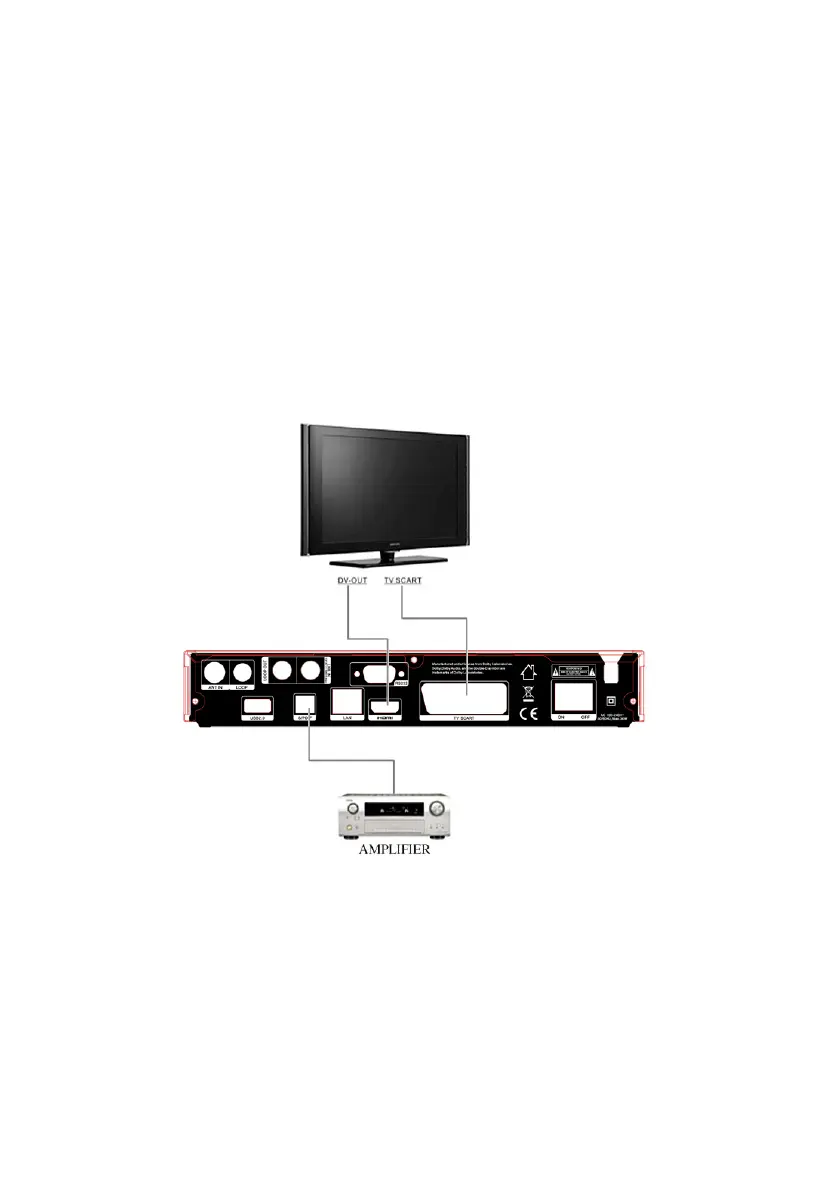

Figure 4. Connecting to TV & VCR
3.2 Connecting the Antenna
You can connect one fixed dish LNB directly to the LNB IN, or connect at least
two dishes LNB by DiSEqC Switch.
