5

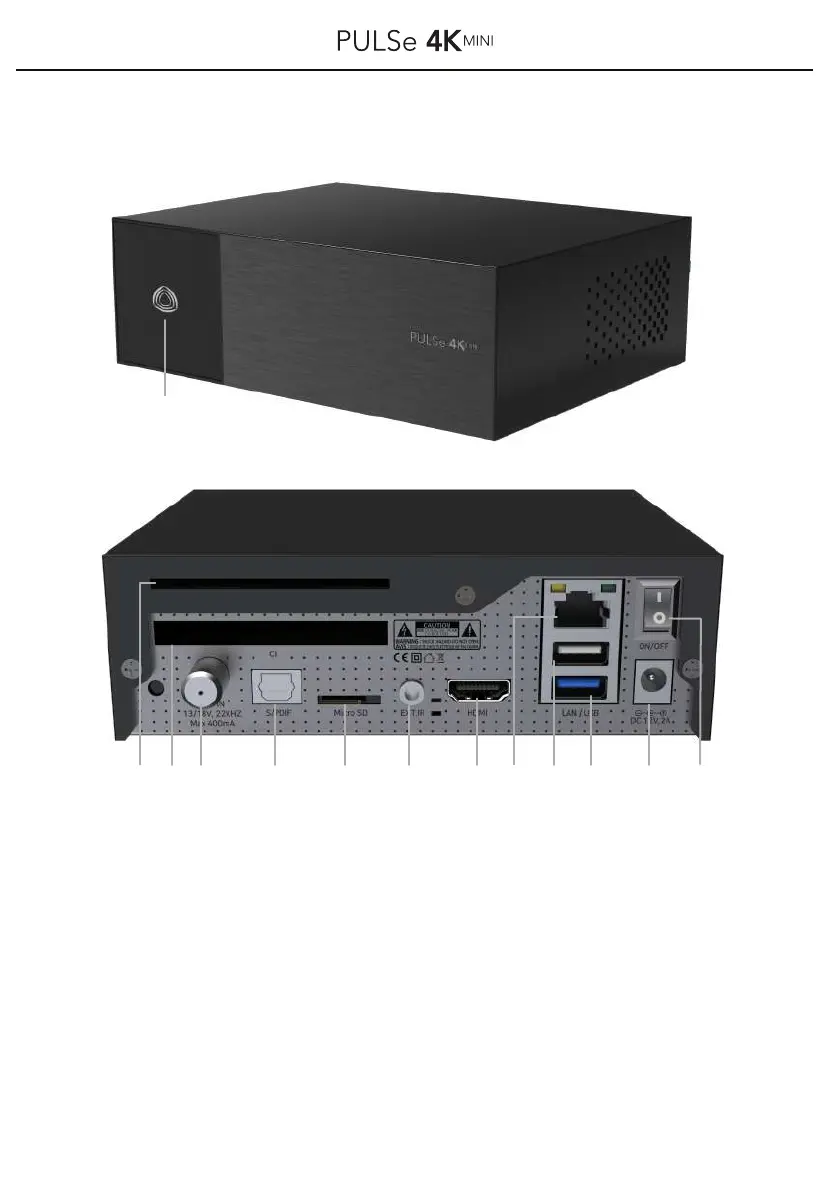

2.1 Front panel/ Rear panel
A Power Button (standby and operating mode)
1 1x CA card reader
2 1x CI module interface
3 LNB input Tuner
4 S/PDIF (Digital audio output)
5 Micro SD card reader
6 Connection for Infrared-Sensor
7 HDMI connection (to TV)
8 LAN 10/100 Mbit/s Network connection
9 USB 2.0 connection
10 USB 3.0 connection
11 External Power supply (DC 12V / 2A)
12 Mechanical power switch
321
A
4 5 6 7 8 109 11 12
