V9000T Trinocular Microscope
7
ASSEMBLY (continued)

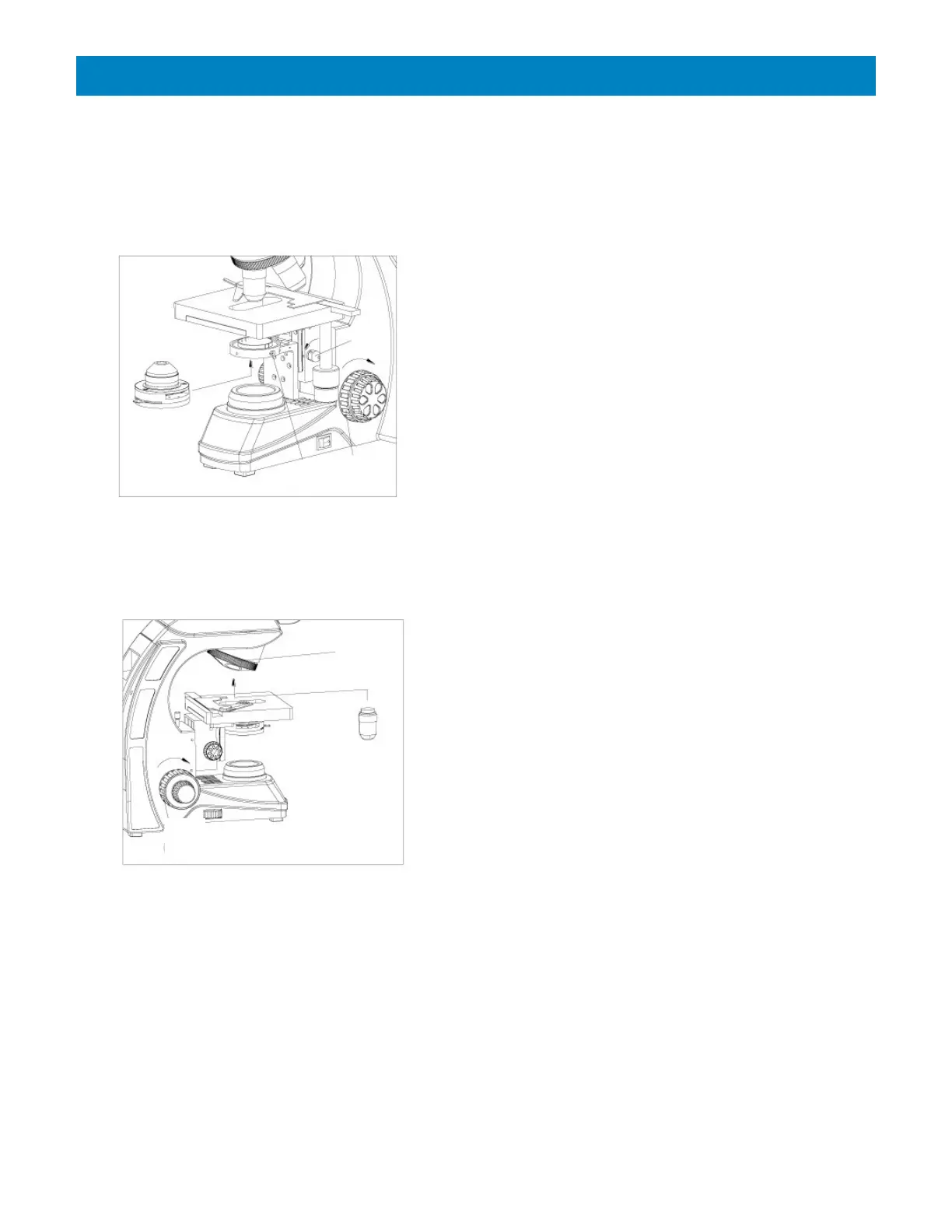

Condenser
The condenser was installed and centered by
our technicians prior to delivery. If the
condenser needs to be re-installed or adjusted
in the future, rotate the coarse focusing knob ①
to raise the stage to the highest position (see
Fig. 1).
Rotate the condenser up-down knob ② to lower
the bracket of condenser to the suitable position.
Fully loosen the condenser lock-screw ③.
Insert the condenser into the hole of the stand
according to the directional arrow, until the
condenser is even with the stand, and then
rotate the condenser to make sure the iris
diaphragm control lever faces forward.
Tighten the lock-screw ③ of the condenser, then
raise the condenser with the up-down knob to
the highest position.
Objectives
Rotate the coarse focusing knob ① to lower the
stage to a suitable position (see Fig. 2).
Install the objectives into the objective
nosepiece ② from the lowest magnification to
the highest in a clockwise direction from the
rear.
To Next Page
