ABB 10D1475 - Page 9

OPTIONAL GROUNDING RINGS
•
The grounding ring
material must be con-
ductive and not sub-
ject to chemical
reaction with the me-
tered fluid.
•
Grounding rings are
available from ABB (2
required).
( Refer to FIGURE 8 )

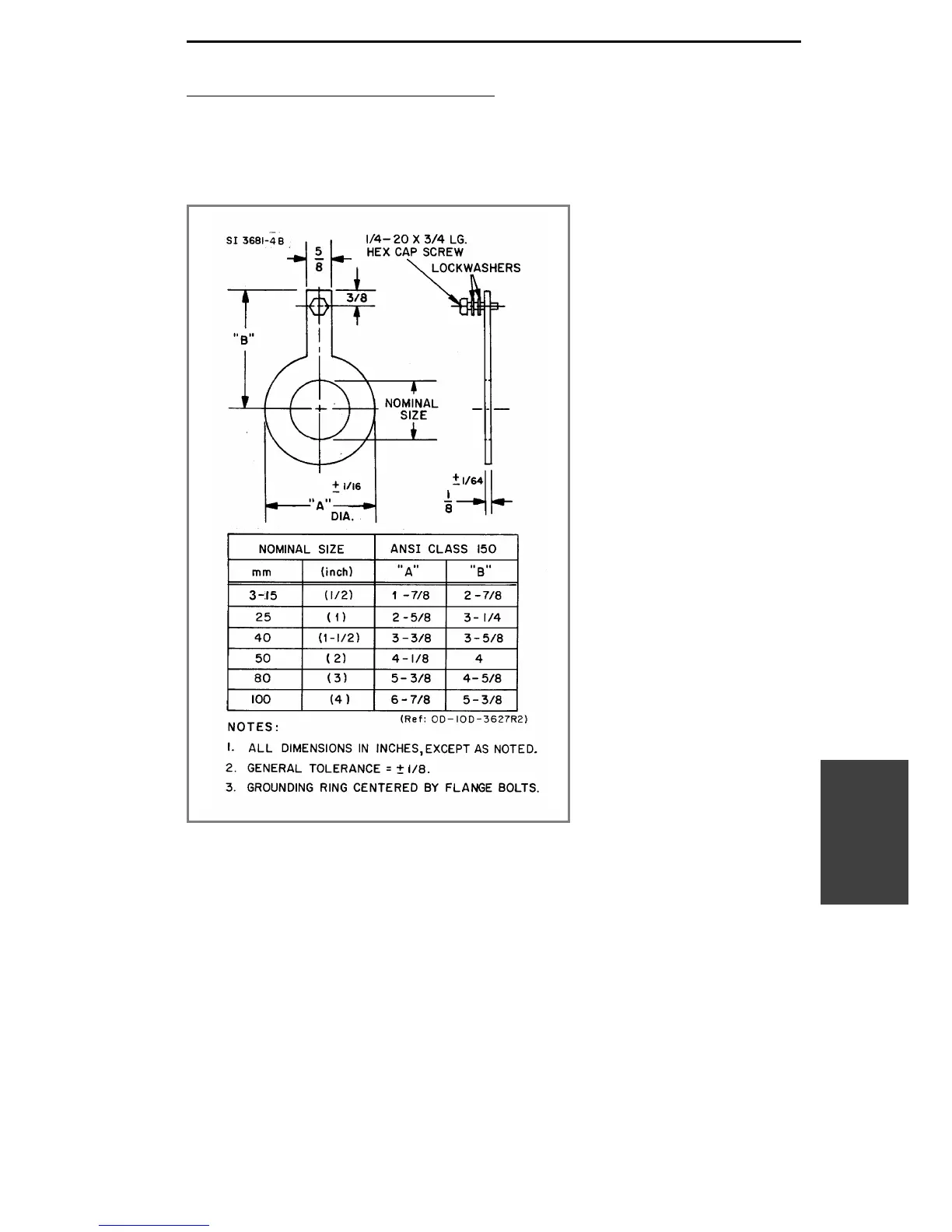

FIGURE 8. Outline Dimensions of
Accessory Grounding Rings
GROUNDING
PROCEDURE
INSTALLATION INSTRUCTIONS
8
