ABB 2CSM256313R0621 User Manual

14
EN

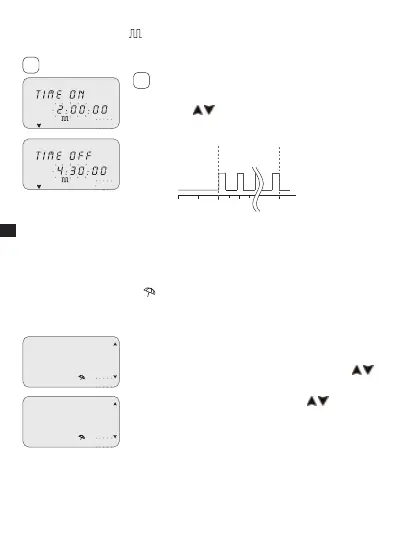

3-3 Cyclic Program
Enables a series of pulses to be executed within a defined period.
The ON time and the OFF time may vary from 1 sec. up to 23:59:59 hours
c1
P01
c1
P01
For programming ref. section 2-3.
In addition, set the time of1. TIME ON and TIME OFF
using keys
.
8
00
12
00
ON
OFF
TIME ON
TIME OFF
Example of set up:
Cyclic Program ON 8:00 - OFF 12:00.
Timing of TIME ON 10 min and TIME OFF 15 min.
3-4 Holidays Program
This enables a period of suspension of the programs to be set, for example, for
summer closing.
off 02:00
20/02/--
c1
P06
on 06:00
15/04/--
c1
P06
Select HOLIDAY P as described under subsection 1.
2-3.
Set the suspension start time (OFF) using keys 2.
.
Press3. OK to confirm.
Set suspension start date using keys 4.
in format
dd/mm/--.
Set the suspension end time and date (ON) as per 5.
operations 2 to 4.
i
i

ABB 2CSM256313R0621 Specifications

General

Voltage Range	24-240 V AC/DC
Timing Range	0.1 s - 100 h
Mounting Type	DIN Rail
Width	22.5 mm
Weight	0.07 kg
Type Designation	2CSM256313R0621
Terminal Type	Screw Terminals
Protection Class	IP20
Product Type	Timer
Output	SPDT
Type	Multifunction Timer
Operating Temperature	-20 to +60 °C
