ENG
10

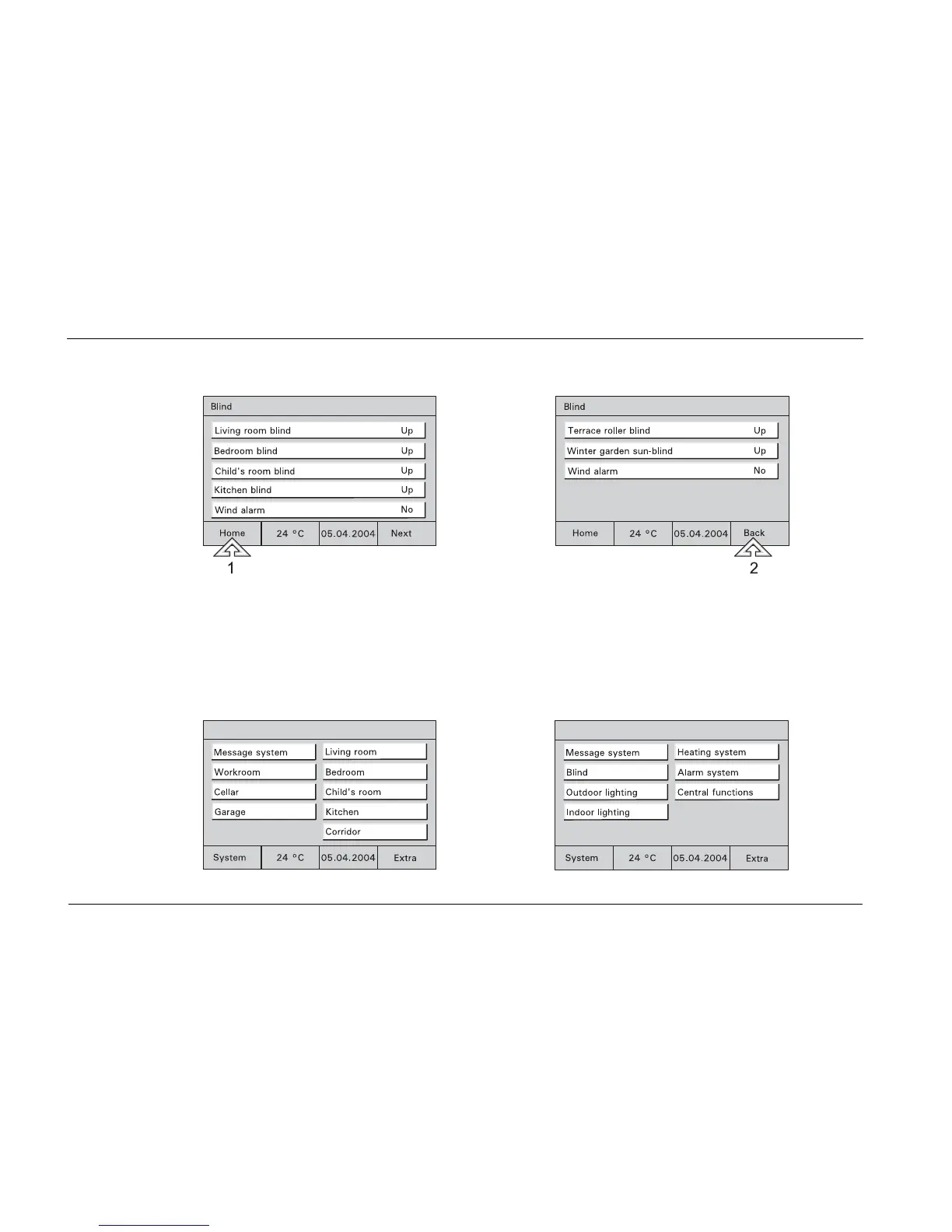

The buttons "1" (Fig. 4) and "2" (Fig. 5) or any other buttons allow changing between the
different screen views.
Fig. 4 Fig. 5
O On the room panels 6136/xx and 6936/xx, up to 8 operating pages can be programmed and
up to 21 operating pages in the control panels 6136/xx and 6936/xx.
All pages can be individually adapted to the project. A reasonable page structure may e.g. be
room-oriented (Fig. 6) or function-oriented (Fig. 7). It is possible to initiate switching processes
directly through touch buttons (depending on the programming) or to call up a pop-up window
to initiate switching processes (Fig. 11).
Fig. 6 Fig. 7
