CHAPTER 3 - Installation of the drive
MANIU04.9607 GB 03/97
Page 3.4

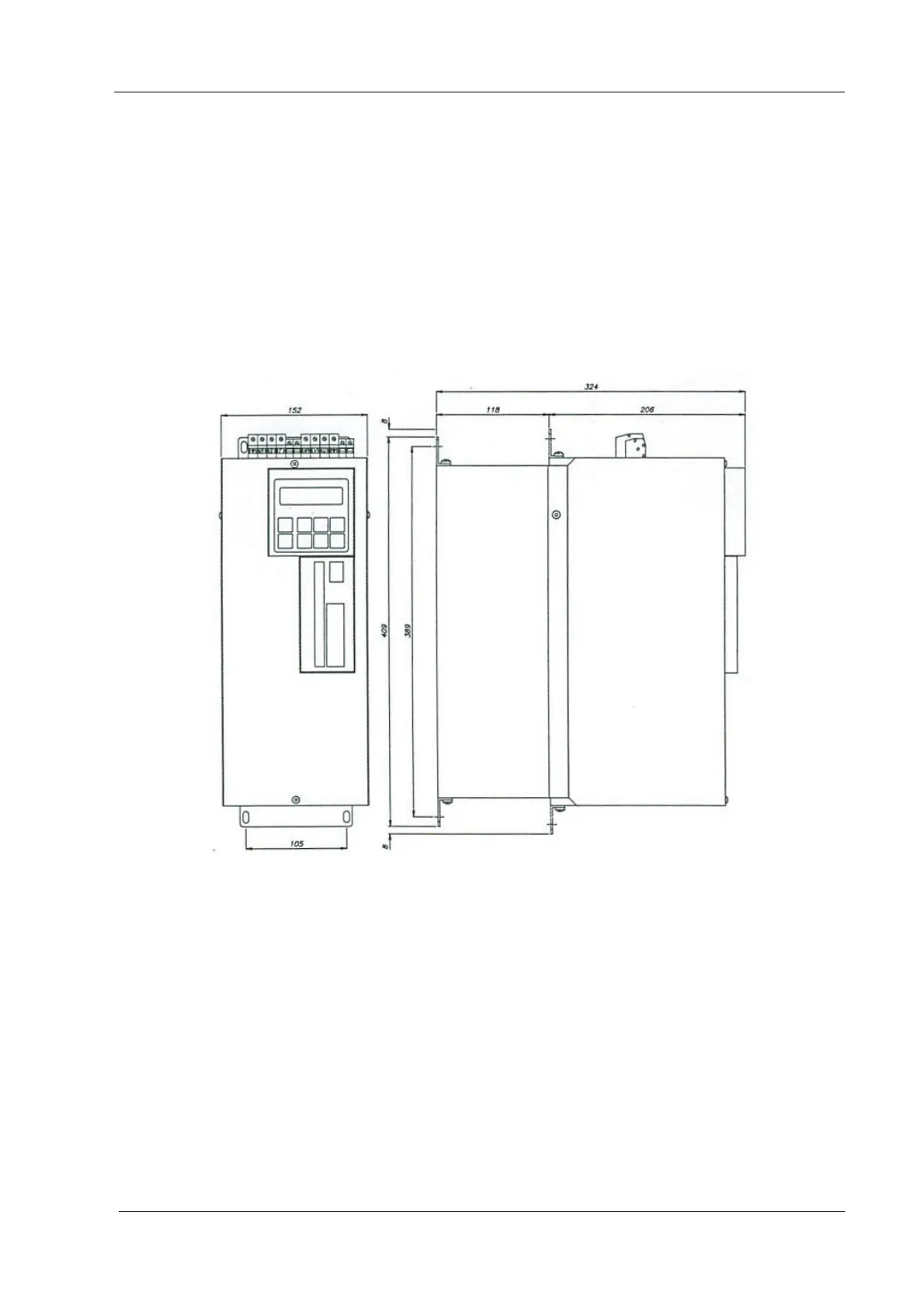

SIZE 224
Models 35/70 and 50/100
Fig.3-4
3.1.3 Electrical installation
As regards power and signal connections, please refer to paragraphs 4.3 and 4.4.
