2.7 Warning plates on the turbocharger
Warning plates are affixed at the following locations:

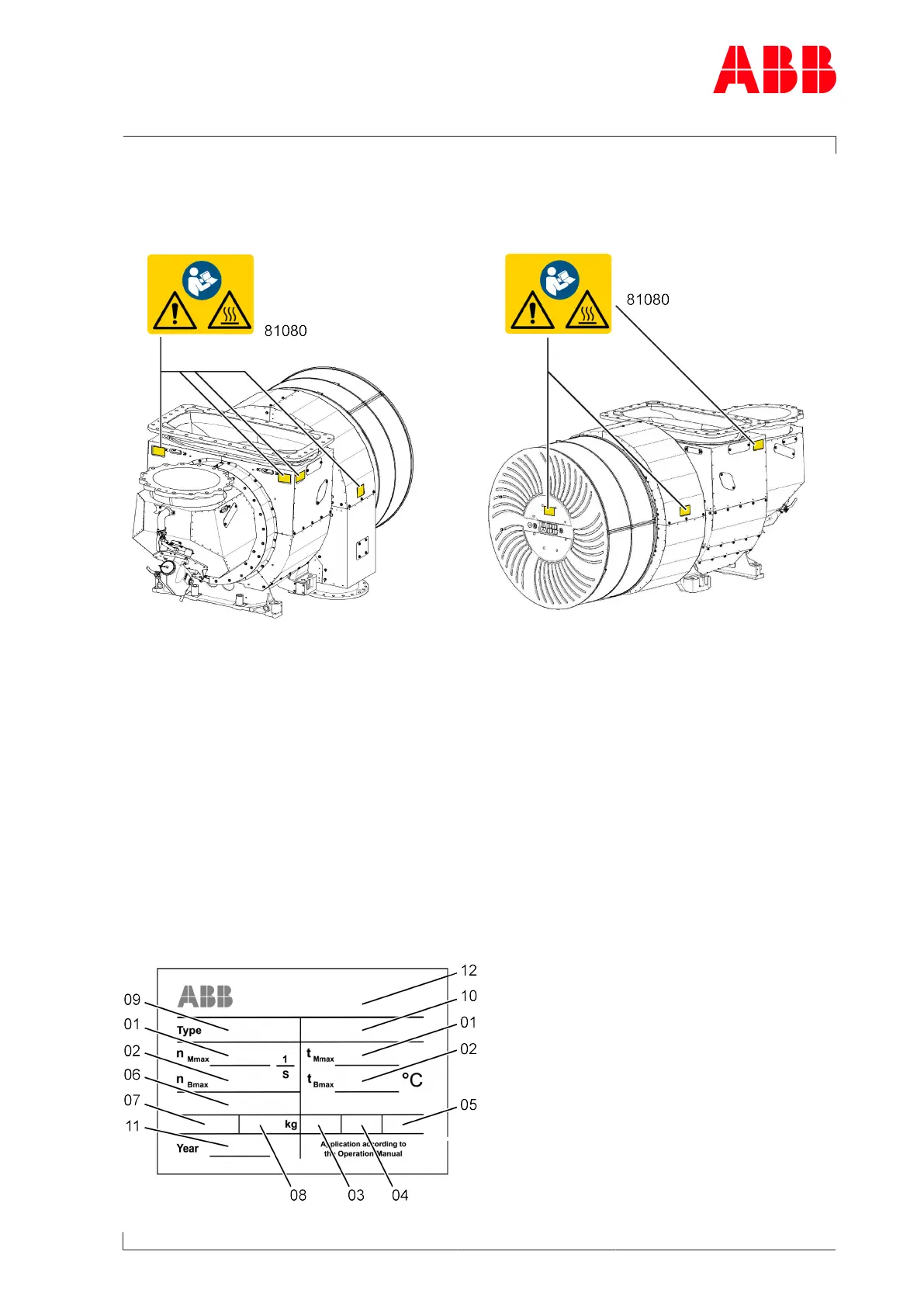

Fig.3: Warning plate locations
If warning plates are not present in the designated locations or not readable, proceed as fol-
lows:
u Order new warning plates from ABB Turbocharging Service Stations.
u Remove any warning plates that have become unreadable.
u Clean and degrease the areas designated for the warning plates.
u Fit new warning plates and remove protective sheets.
Turbochargers supplied to the enginebuilder without insulation must be equipped later with
warning plates on the insulation. This is the responsibility of the enginebuilder.
2.8 Turbocharger rating plate
Fig.4: Rating plate
