Operation Manual / A150-M56/66/57/67 - A155-M..
12 Dismantling and fitting, special tools for fastening strips / î™
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
12 Dismantling and fitting, special tools
for fastening strips
ABB offers an optional special tool set(90160) which, in the event of limited accessibility,
can be used to facilitate the loosening of nuts and the application of tightening torques for
the strip connection between the cartridge group and the turbine casing.
See also chapter Tools →188.
The spanner holder(90165) should only be used for loosening the nuts and applying tighten-
ing torques for the nuts at the position shown.
Other screws or nuts on the turbocharger should not be tightened with this tool.
Customer tool (not included in the ABB scope of delivery)

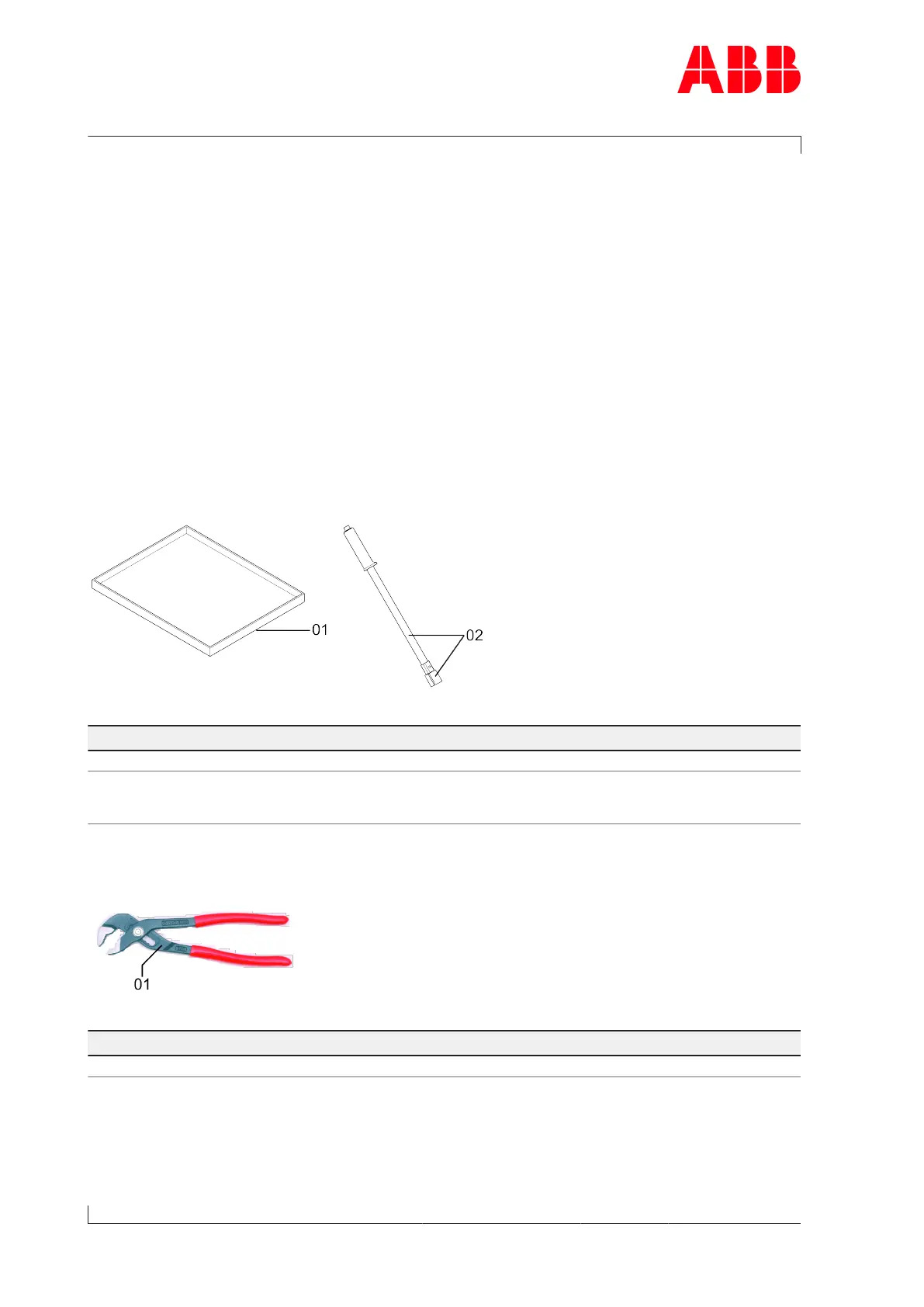

Fig.105: Customer tool
Position Description Quantity
01 Collection tub 500x400x30mm 1
02 Torque spanner 40-200 Nm with
plug connection for holding inser-
tion tools 14x18 mm
1
Table66: Customer tool
Customer tool (not included in the ABB scope of delivery)
Fig.106: Customer tool
Position Description Quantity
01 Universal pliers 1
Table67: Customer tool
Page 150 / 194
