ABB ACS 600 Series User Manual

Appendix A – ACS/ACC/ACP 604/607 Technical Data
A-20 ACx=ACS/ACC/ACP ACS/ACC/ACP 604/607 Drives

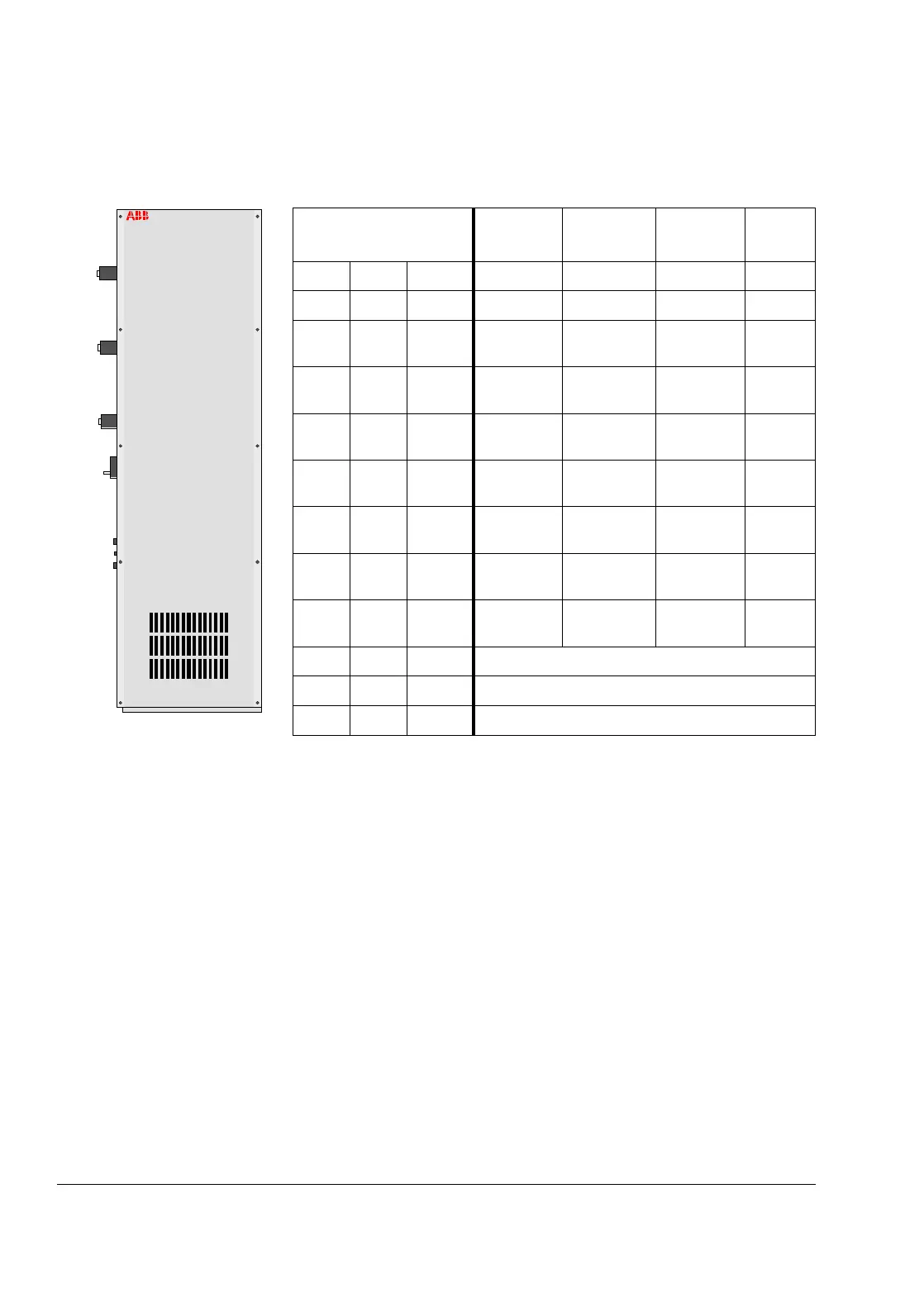

Dimensions and
Weights (ACx 604)
Dimensions and weights of the ACx 604s are given below.
Width marked with * does not include motor cable terminals, Ground PE
terminal or DC bus terminals.
ACS 604 Type
Height
mm (in)
Width
mm (in)
Depth
mm (in)
Weight
kg (lbs)
0100-3 0120-5 0100-6 860 (33.86) 480 (18.89) 428 (16.85) 88 (194)
0120-3 0140-5 0120-6 860 (33.86) 480 (18.89) 428 (16.85) 88 (194)
0140-3 0170-5 0140-6/
0170-6
1250 (49.2) 462*/524
(18.19/20.63)
407 (16) 135 (297)
0170-3 0210-5 0210-6 1250 (49.2) 462*/524
(18.19/20.63)
407 (16) 140 (308)
0210-3 0260-5 0260-6 1250 (49.2) 462*/524
(18.19/20.63)
407 (16) 140 (308)
0260-3 1600 (63) 462*/524
(18.19/20.63)
407 (16) 166 (365)
0320-3 1600 (63) 462*/524
(18.19/20.63)
407 (16) 166 (365)
0320-5 0320-6 1600 (63) 462*/524
(18.19/20.63)
407 (16) 171 (376)
0400-5 0400-6 1600 (63) 462*/524
(18.19/20.63)
407 (16) 171 (376)
0400-3 0490-5 0490-6 2 x Dimensions of ACx 604-0210-3
0490-3 0610-5 0610-6 2 x Dimensions of ACx 604-0260-3
0610-3 0760-5 0760-6 2 x Dimensions of ACx 604-0320-3
U2
V2
UDC+
UDC-
W2
PE
ACS 600

ABB ACS 600 Series Specifications

General

Type	AC Drive
Frequency Range	0 to 500 Hz
Storage Temperature	-40 to +70 °C
Enclosure	IP21, IP54
Control Method	Scalar control, Vector control
Communication	Modbus
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Cooling Method	Air-cooled
Relative Humidity	5 to 95 % (non-condensing)
Altitude	Up to 1000m without derating
Ambient Temperature	-10 to +40°C
