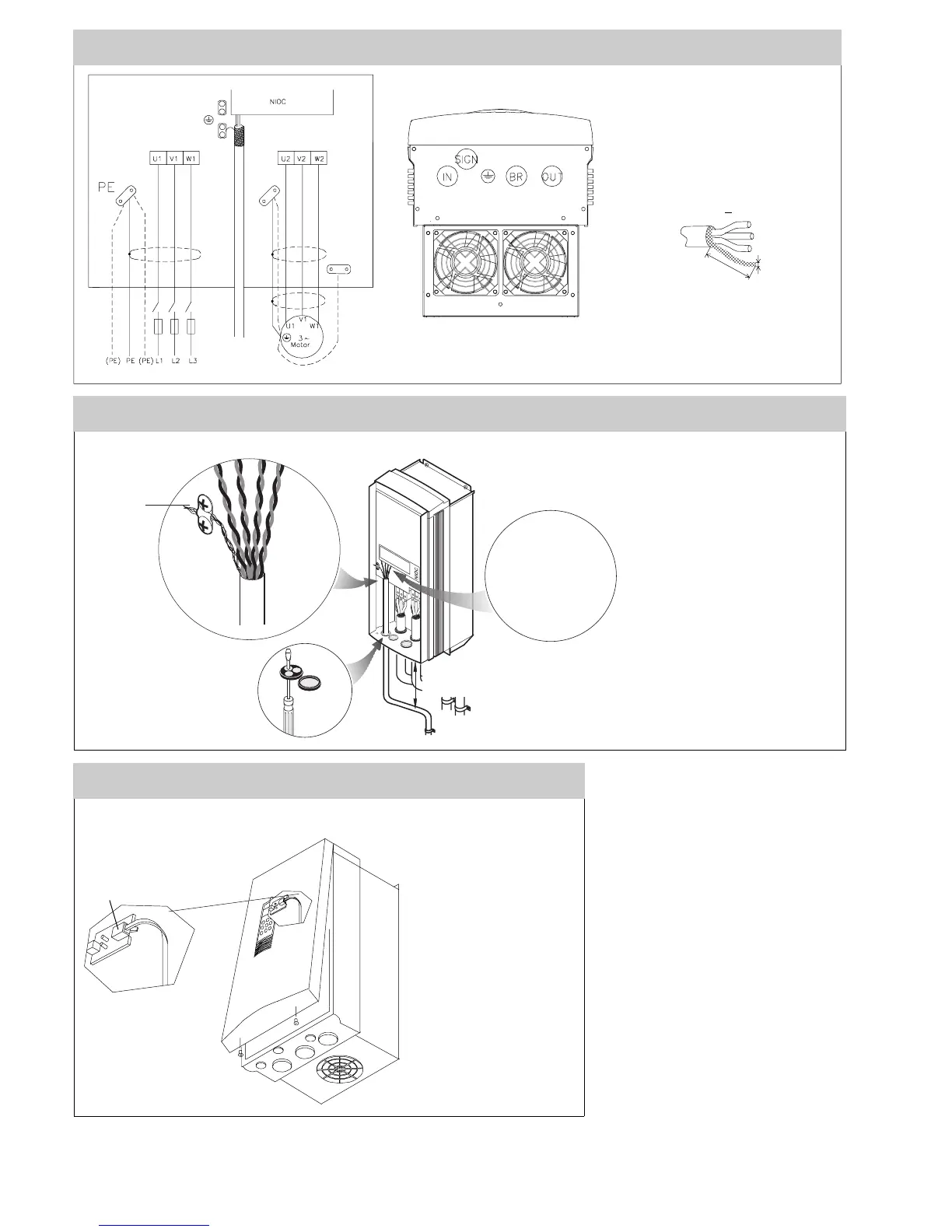

1. Connect the motor cable.
2. Connect the mains cable.
Ensure proper earthings.
For minimal radio frequency
interference (RFI) at the motor
end:
1. Twisted screen:
Diameter (Ø) >
1/5 · Length (L),
or
2. Screen 360° earthing at cable
lead-through.
L
Ø
8
9
Control cable installation:
1. Make hole in a control cable
grommet and lead the cable into
the unit.
2. Connect the earthing wires
and the cable shield to the
earthing terminal next to the
NIOC board.
3. Connect the control cables to
the input/output terminals.
1. Connect the control panel
cable to connector X2.
2. Replace the front cover.
10
1.
2.
2.
1.
Earthing Wires
and the cable shield
3.
300 mm
free space
ABB Industry Oy Drives P.O. Box 184 FIN-00381 Helsinki tel: +358-10 22 2000 fax: +358-10 22 22681
Code: 3AFY 59019902 R0125
Effective: 3.3.1998/EN
Standard
Input/Output
Connections: See
the
Start-up
Guide
or Manual.
X2
