Electrical installation 25
Connect the cables to their corresponding busbars. Use cable lugs suitable for M12
bolts. The required tightening torque is 40 Nm.
• Feeder cables to busbars U1, V1, W1
• Motor cables to busbars U2, V2, W2
• Screen ends of all conductors and the shields of all cables to the PE or FE
ground busbar
• Ground cable to the PE ground busbar

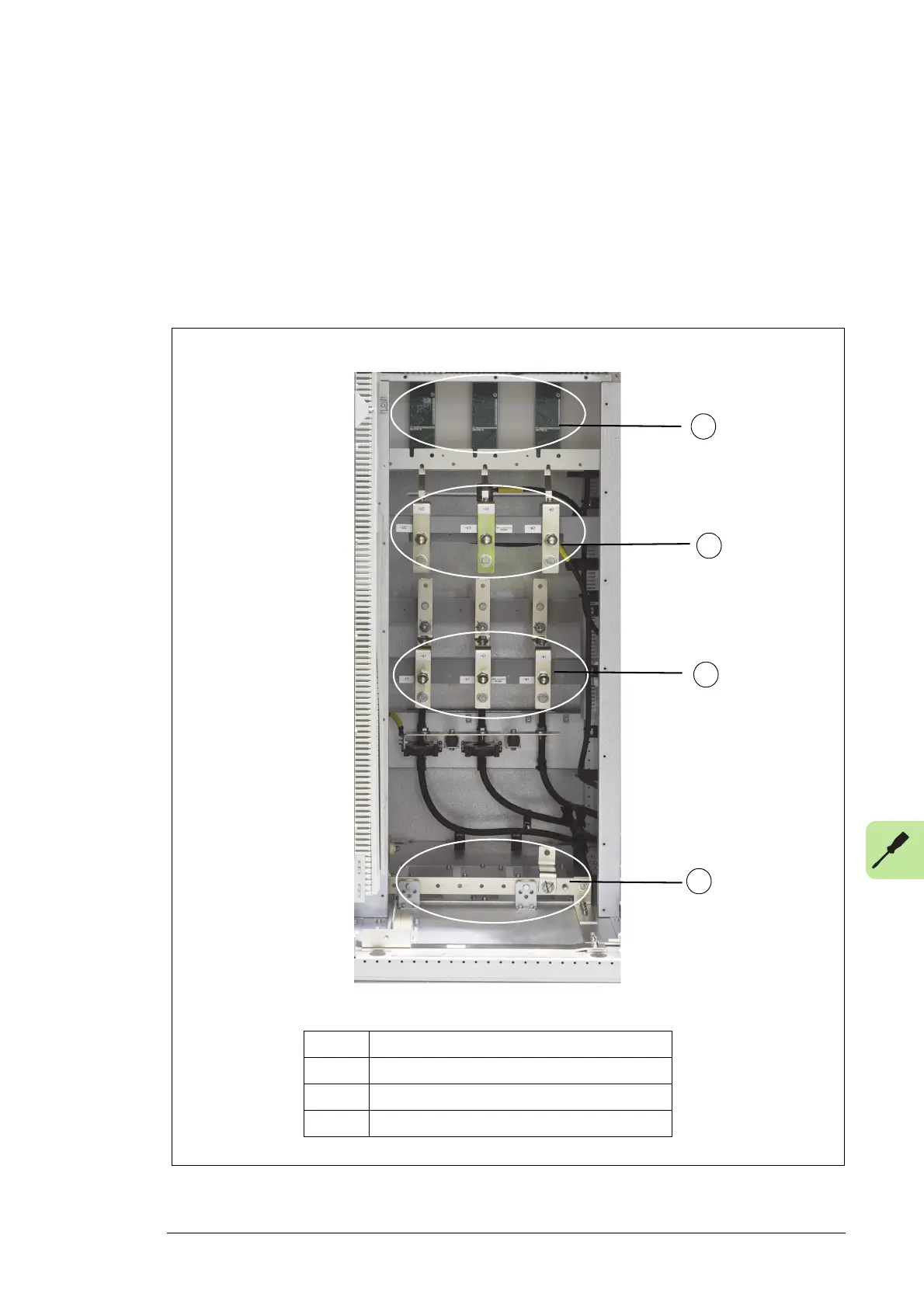

Terminal compartment with cover plate removed, view from front.
1 Voltage dividers
2 Motor side terminals
3Input terminals
4 Cable entry plate (bottom plate)
1
2
3
4
