Start-up with medium voltage stator 71
Phase U current transformer polarity check:
• +1.5 V is connected to X1:1 of the NUIM-6x unit and
• -1.5 V is connected to X1:2 of the NUIM-6x unit.

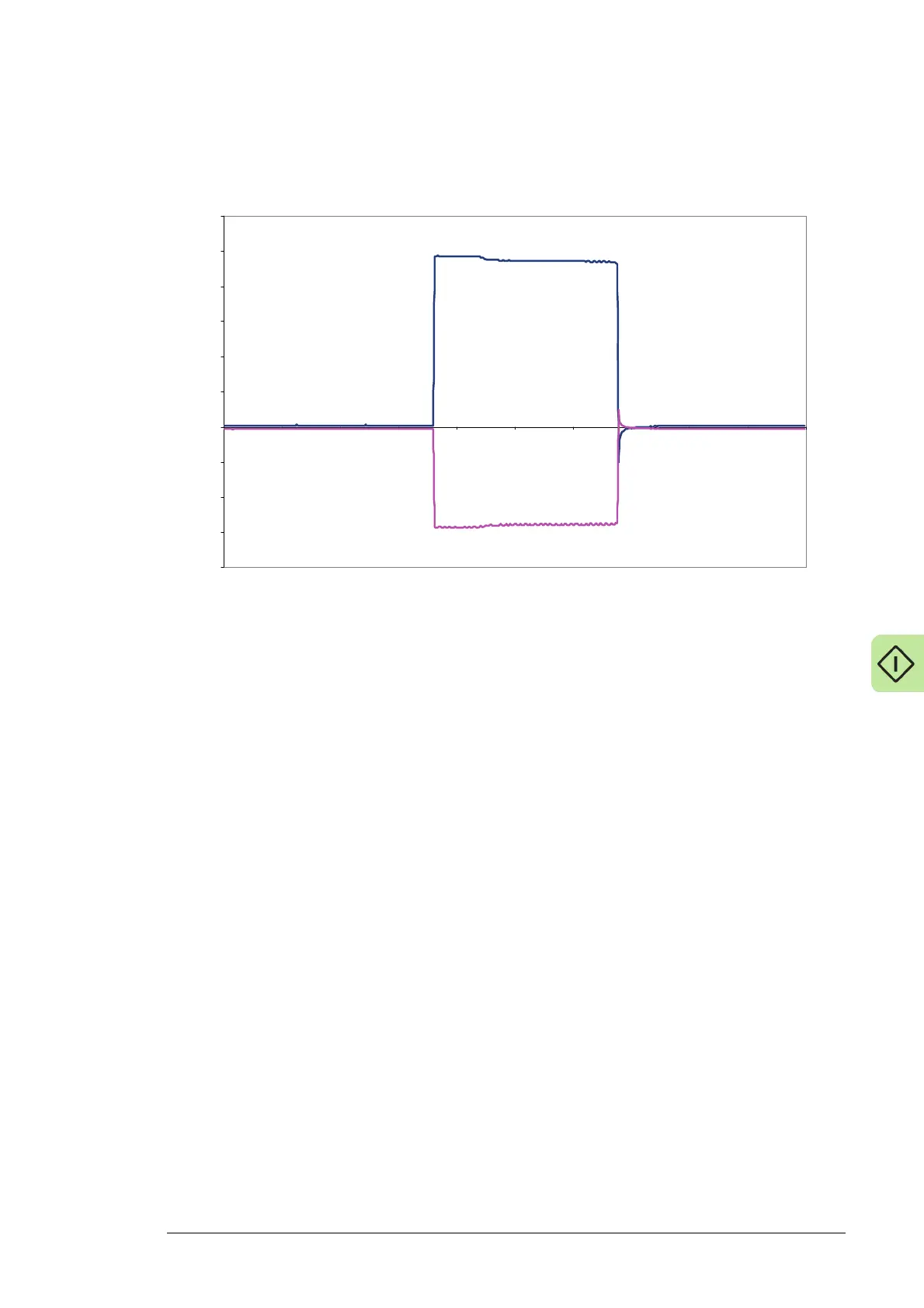

06.01 STATOR IU measures positive values. The values depend on the used scaling
factors.
06.02 STATOR IY measures negative values, which are approximately 60% of the
STATOR IU.
Note: Values depend on the battery voltage and current transformer transformation ratio.
Note: When battery is removed, the signals behave in the opposite way.
D
(
(
D
,
(D, -
/12345@
/128457
21.07 BATTERY TEST is set to CONNECT BATT
