118 Electrical installation

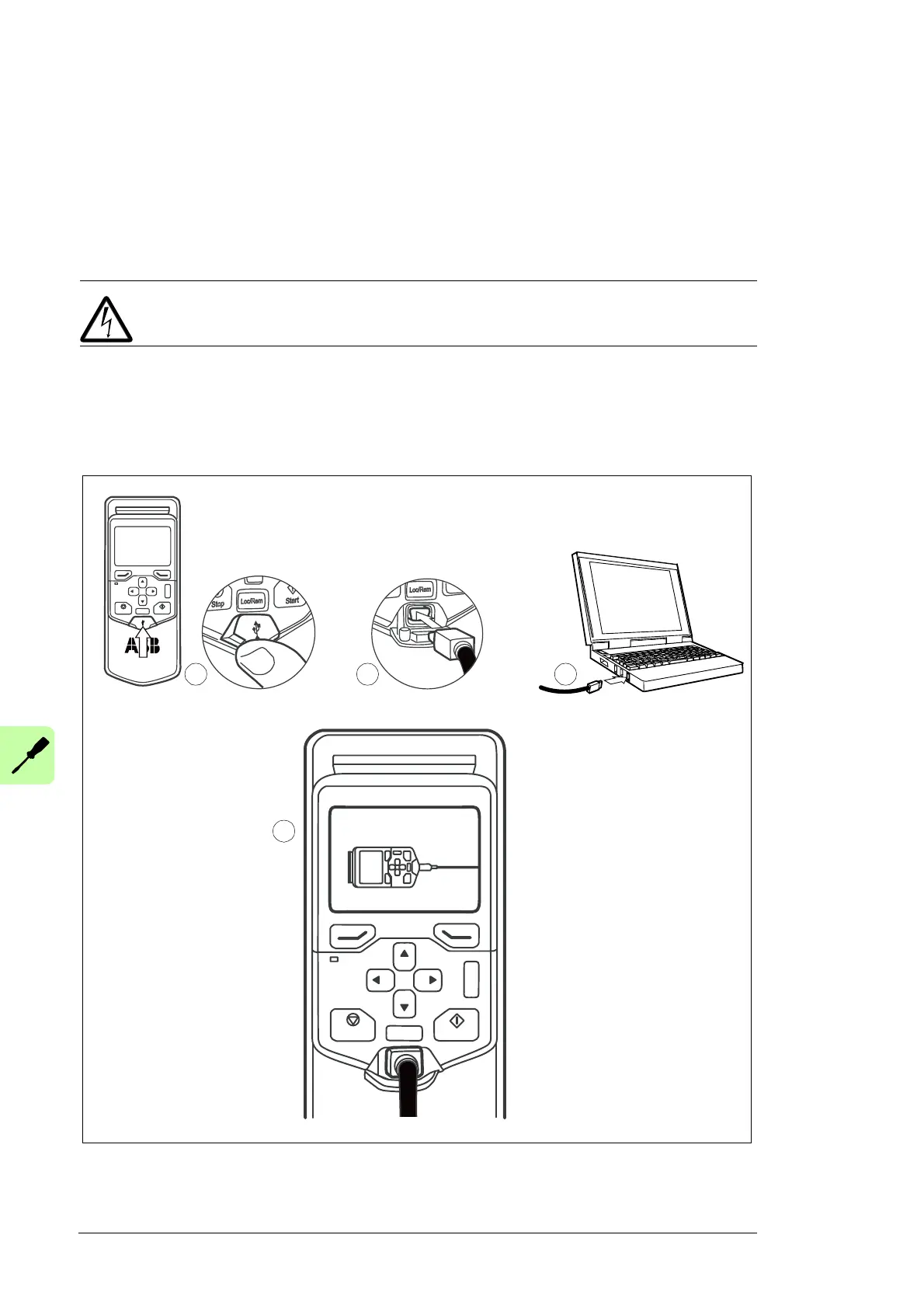

Connecting a PC
A PC (with eg. the Drive composer PC tool) can be connected to the inverter unit as
follows:
1. Connect an ACS-AP-I control panel to the inverter control unit either by using an
Ethernet (eg. CAT5E) networking cable, or by inserting the panel into the panel holder
(if present).
WARNING! Do not connect the PC directly to the control panel connector of the
inverter unit as this can cause damage.
2. Remove the USB connector cover on the front of the control panel.
3. Connect an USB cable (Type A to Type Mini-B) between the USB connector on the
control panel (3a) and a free USB port on the PC (3b).
4. The panel will display an indication whenever the connection is active.
5. See the documentation of the PC tool for setup instructions.
?
Start
Stop
Loc/Rem
USB connected
