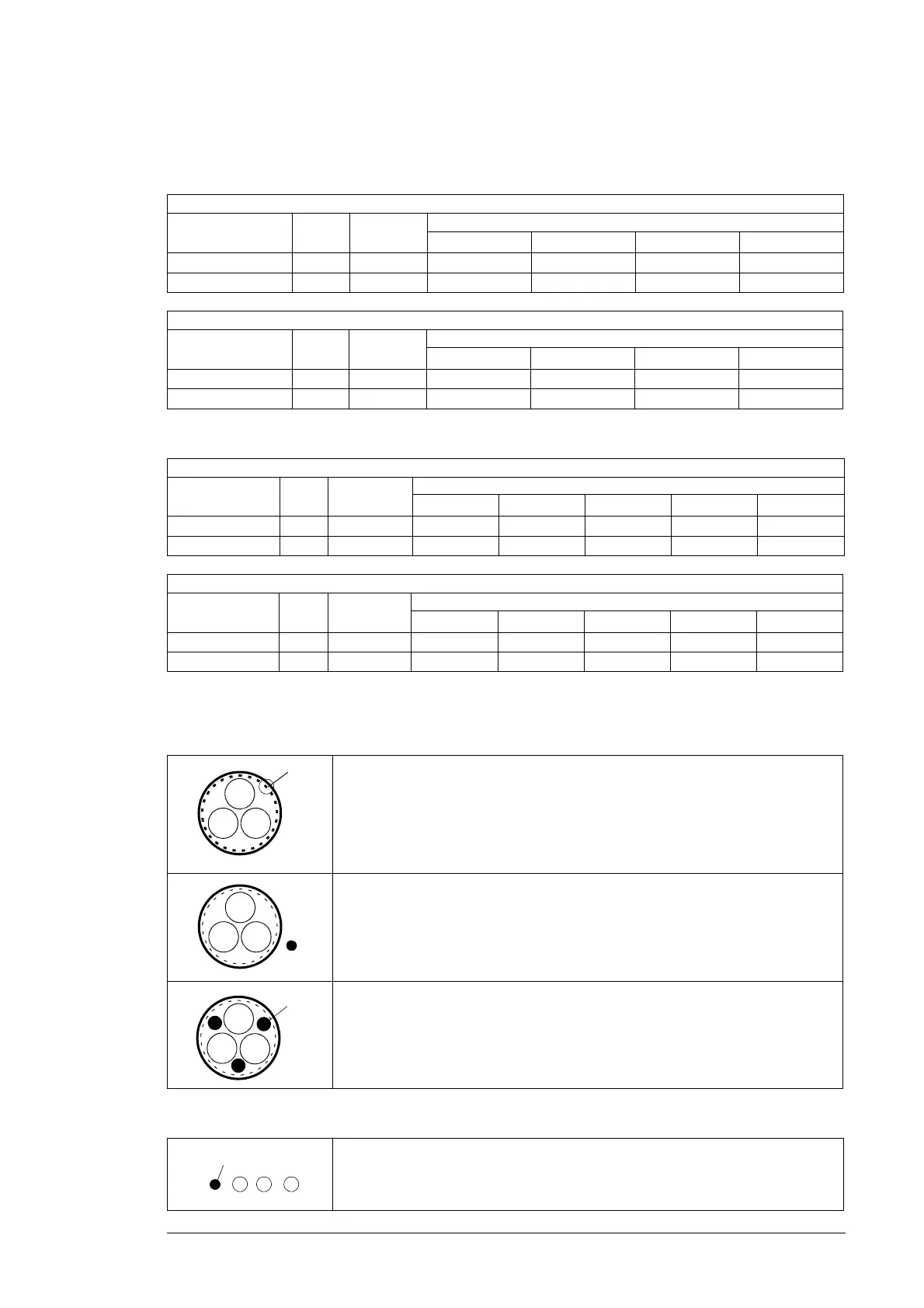

Planning the electrical installation 57
 Typical power cable sizes
CE cables
UL cables
 Alternative power cable types
The power cable types that you can use with the converter are shown below.
Power cable types for limited use
Generator cables
Converter type
ACS880-87LC-
Cable
type
Conductor
type
Total quantity of parallel cables
240 mm
2
185 mm
2
120 mm
2
95 mm
2
4000A/4021A-7 EPR Copper 9 10 13 15
4000A/4132A-7 EPR Copper 9 10 13 15
Grid cables
Converter type
ACS880-87LC-
Cable
type
Conductor
type
Total quantity of parallel cables
240 mm
2
185 mm
2
120 mm
2
95 mm
2
4000A/4021A-7 EPR Copper 9 11 14 16
4000A/4132A-7 EPR Copper 9 11 14 16
Generator cables
Converter type
ACS880-87LC-
Cable
type
Conductor
type
Total quantity of parallel cables
500 kcmil 400 kcmil 350 kcmil 300 kcmil 250 kcmil
4000A/4021A-7 EPR Copper 20 22 24 26 29
4000A/4132A-7 EPR Copper 20 22 24 26 29
Grid cables
Converter type
ACS880-87LC-
Cable
type
Conductor
type
Total quantity of parallel cables
500 kcmil 400 kcmil 350 kcmil 300 kcmil 250 kcmil
4000A/4021A-7 EPR Copper 21 24 26 29 32
4000A/4132A-7 EPR Copper 21 24 26 29 32
Symmetrical shielded cable with three phase conductors and a concentric PE
conductor as shield. The shield must meet the requirements of IEC 61800-5-1.
Check with local / state / country electrical codes for allowance.
Symmetrical shielded cable with three phase conductors and a concentric PE
conductor as shield. A separate PE conductor is required if the shield does not
meet the requirements of IEC 61800-5-1.
Symmetrical shielded cable with three phase conductors and symmetrically
constructed PE conductor, and a shield. The PE conductor must meet the
requirements of IEC 61800-5-1.
A four-conductor system (three phase conductors and a protective conductor on
a cable tray) is not recommended for cabling.
PE
PE
PE
PE
