ABB AMXE160 - Page 20

MOTORS FOR HEAVY ELECTRICAL VEHICLES
20

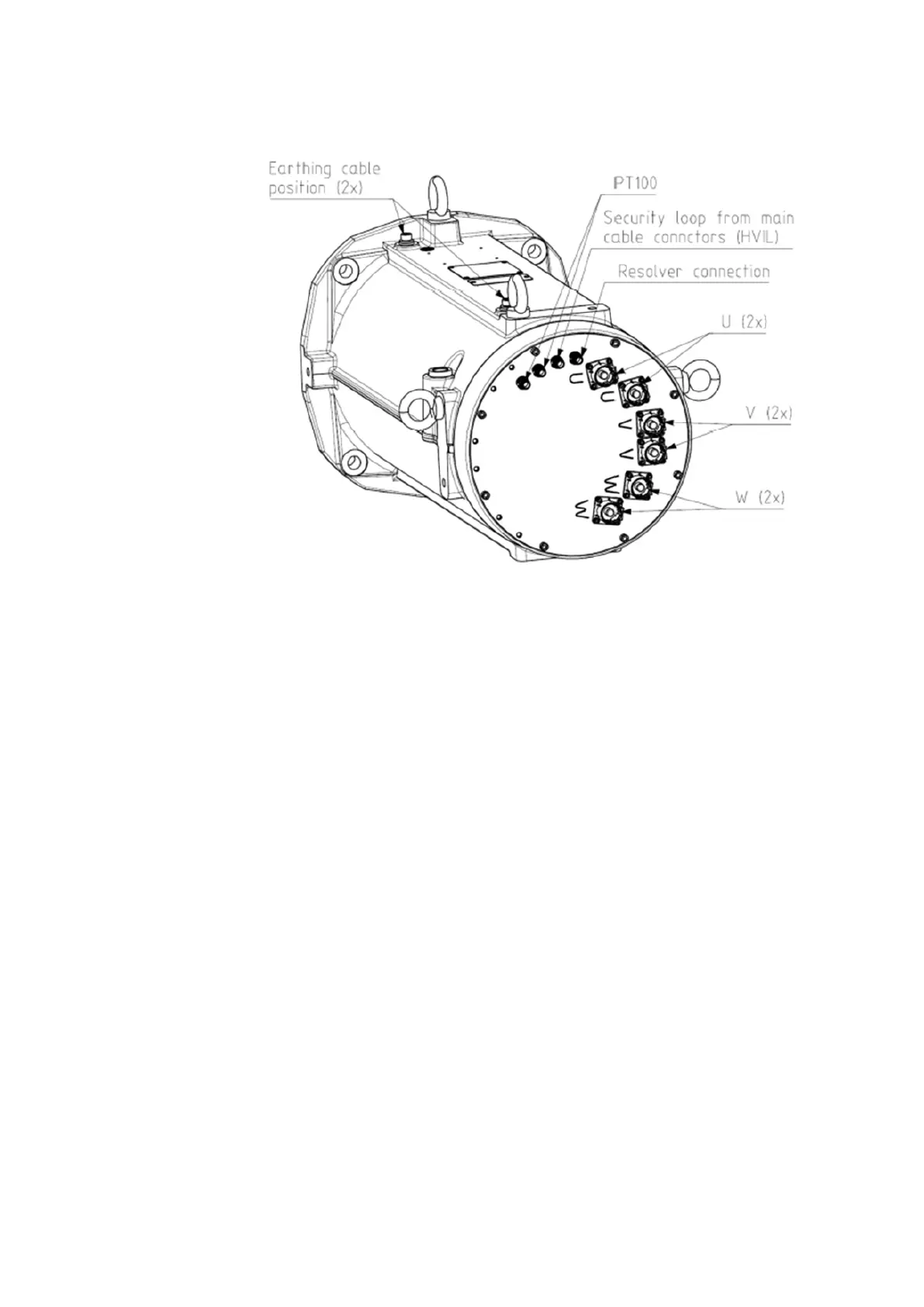

Figure 11. Connection box at delivery and location of earth points.
The earth cable from the inverter or vehicle chassis must be installed in an appropriate way and be
suitable for high frequency currents.
NOTE: Ensure that the dedicated surfaces on the earth points are free from paint and dirt to ensure
a good connection.
