PRODUCT DESCRIPTION
9
Item no. Designation
 External shaft seal
 End shield DE
 Stator frame
 Rating plate
 Separate rating plate with liquid cooling system data
 End shield NDE
 Connection box
 DE bearing
 Shaft
 NDE bearing

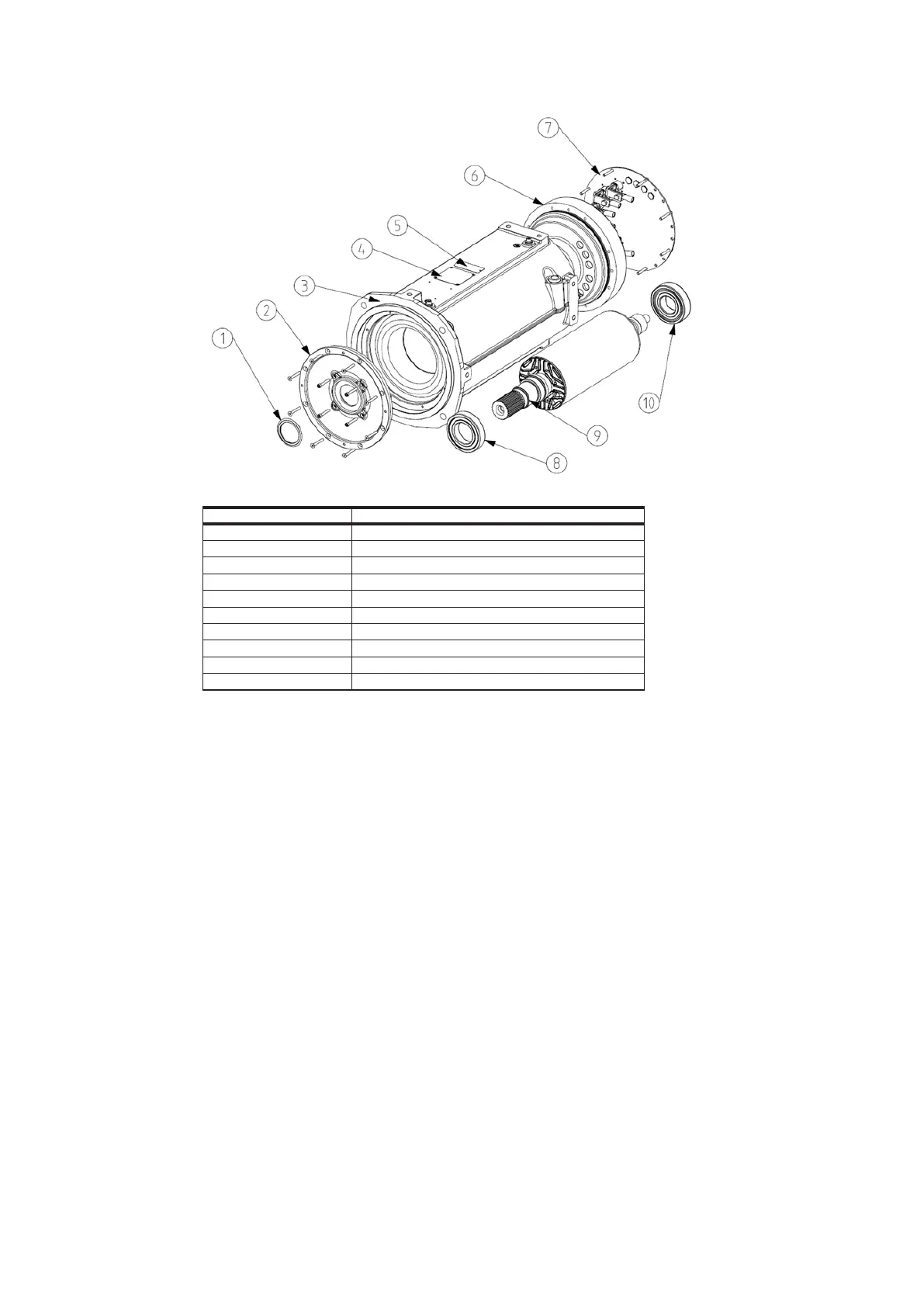

Figure 1. Exploded view of the motor.
