212 AO2000 CONTINUOUS GAS ANALYZERS | OI/AO2000-EN REV. B
3 Link Output 1 of the function block 'FB Const Pump' to input I2: Speed of
the function block 'FB Pump'.
Results of the configuration example

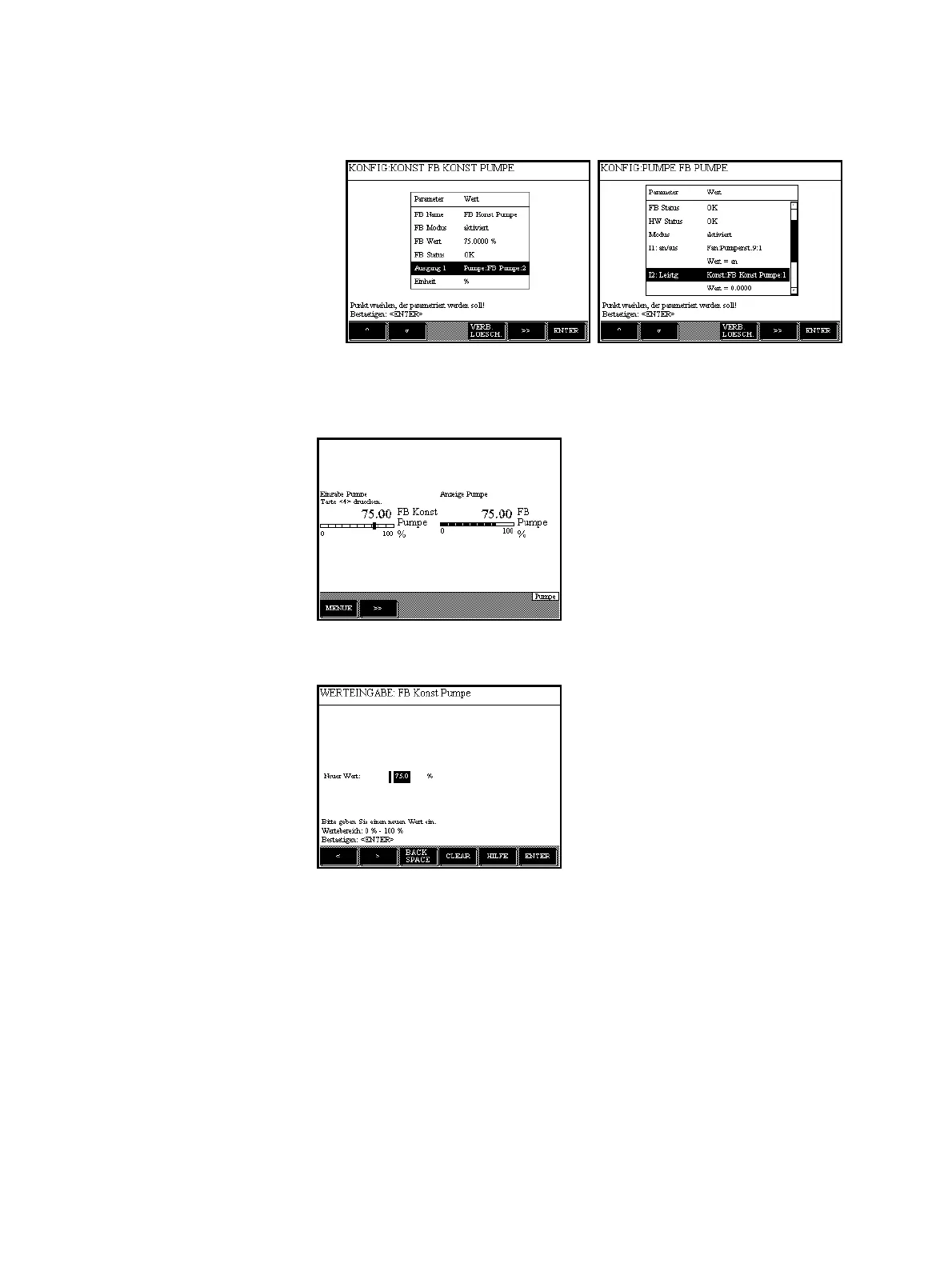

The following diagram shows the display with the display elements "Value
entry" and "Bar display".
The following diagram shows the field for entry of the value; this is select-
ed by pressing key 4 during measurement mode (see section "Operating by
value entry" (see page 147)).
