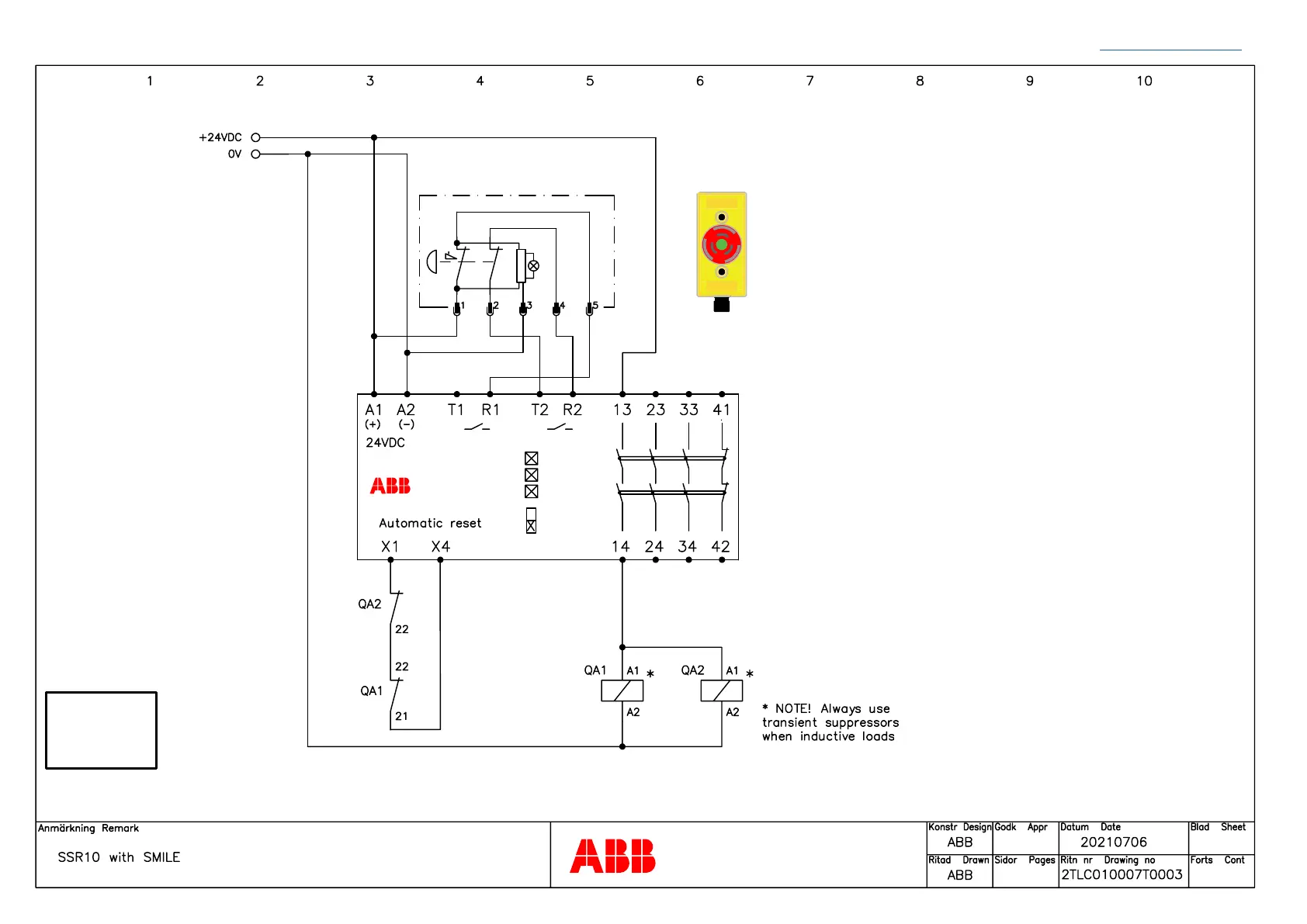

CONNECTION DIAGRAMS SENTRY
15 Back to table of contents
SSR10SENTRY
CH1
MODE
CH2
M
A
E-STOP BUTTON INCA/SMILE
SMILE 11 EA
Jokab Safety
CH1 CH2
PLe
According to
EN ISO 13849-1
Note: The stated PL is only valid if all relevant requirements according to EN ISO 13849-1/-2 are met. It is the responsibility of the
machine builder to make a risk assessment and make sure that the appropriate functional safety levels are achieved.
Safety Products
