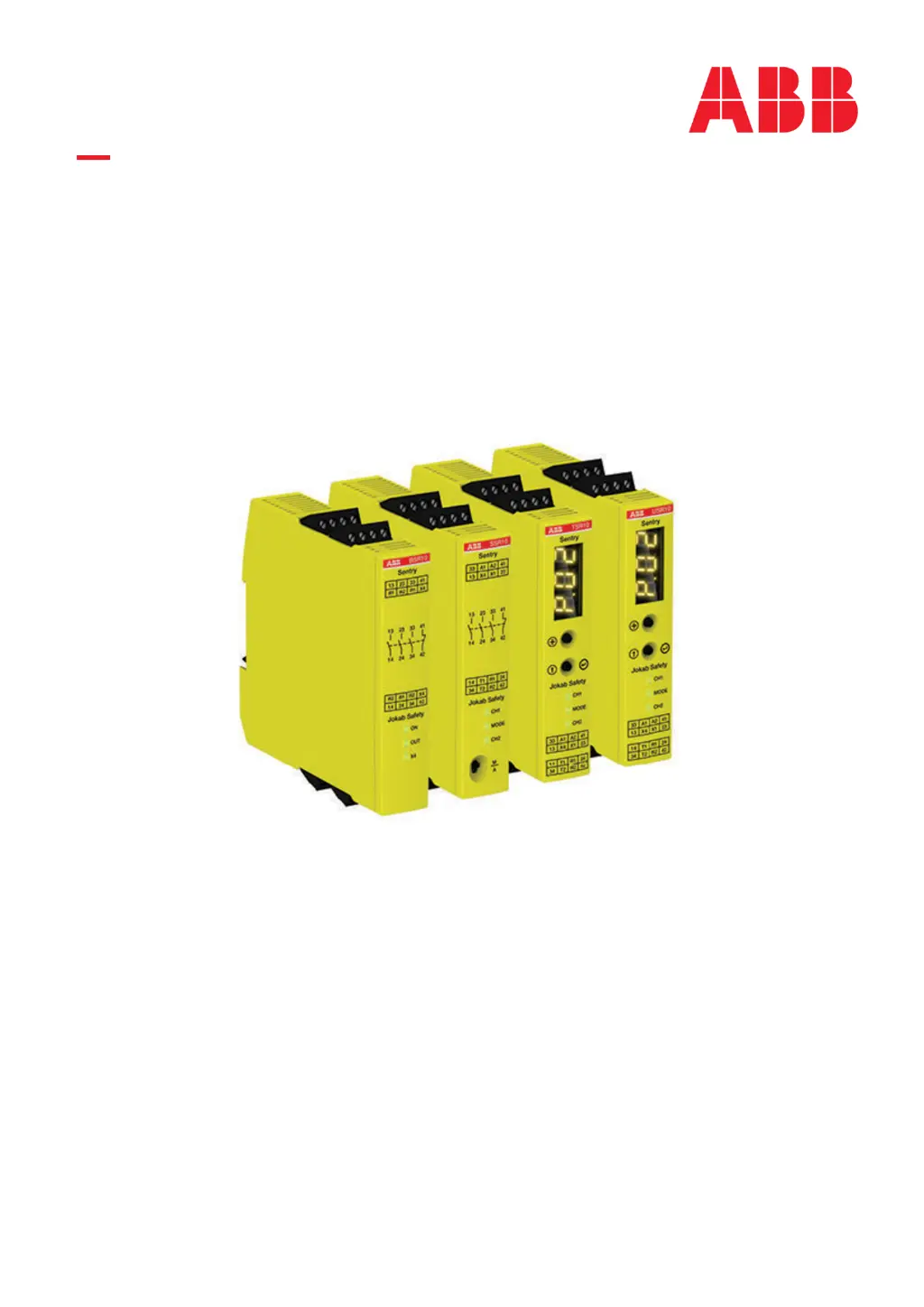

SAFETY PRODUCTS
Safety relays
Sentry BSR23
Product Manual
ORIGINAL INSTRUCTIONS2TLC010062M0201 Rev.F

Table of Contents

Questions and Answers

  • R
    Ruth EnglishAug 7, 2025
    How to troubleshoot ABB Sentry BSR23 when no channel is activated or there is no input voltage to A1/A2?
    • A
      ana58Aug 7, 2025
      If no channel is activated or there is no input voltage to A1/A2, verify safety A1 and measure the R1/R2 voltage.

ABB Sentry BSR23 Specifications

General IconGeneral
Supply voltage24 V DC
Performance levelPL e
Response time≤ 20 ms
Number of safety outputs3
Number of auxiliary outputs1
Stop category0
TypeSafety relay
Rated Voltage24 V DC
Frequency50 / 60 Hz
Safety category4
Protection FunctionsOverload protection
StandardsEN ISO 13849-1, IEC 60204-1
