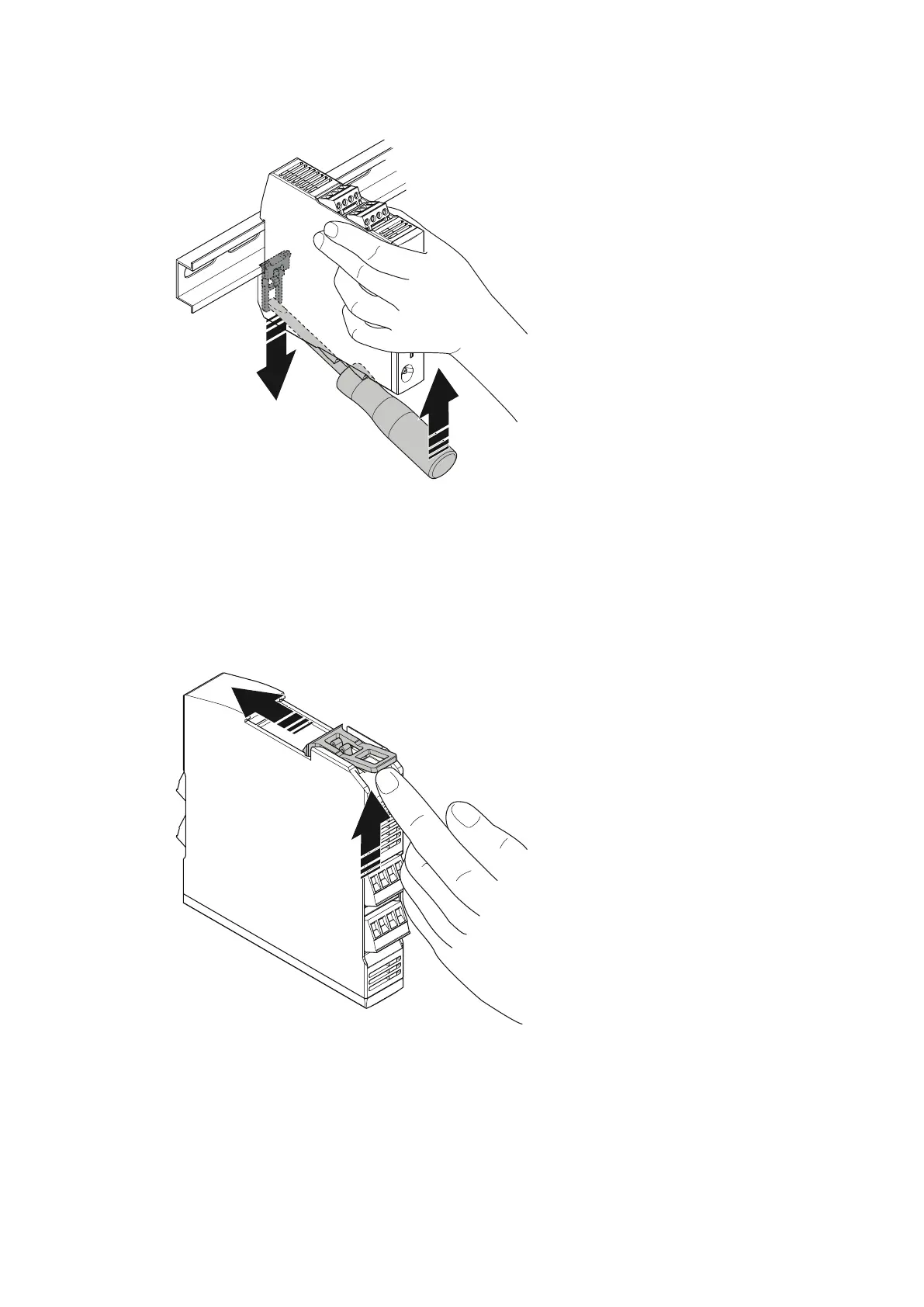

4.3 Removing the safety relay from the DIN rail
1. Use a screwdriver to unlock the DIN relay latching device from the DIN rail.
2. Pull the bottom rear side of the safety relay away from the DIN rail until a click is heard.
3. Lift the top rear side of the safety relay away from the DIN rail.
4.4 Resetting the latching device
• Pull the bottom side of the DIN rail latching device from the safety relay and push it
upwards to release it to its original position.
