ABB Sentry BSR23 - Safety Relay Overview

8 2TLC010062M0201 Rev.F
3.3 Safety relay overview
M
L
K
J
H
G
F
A
B
C
D
E

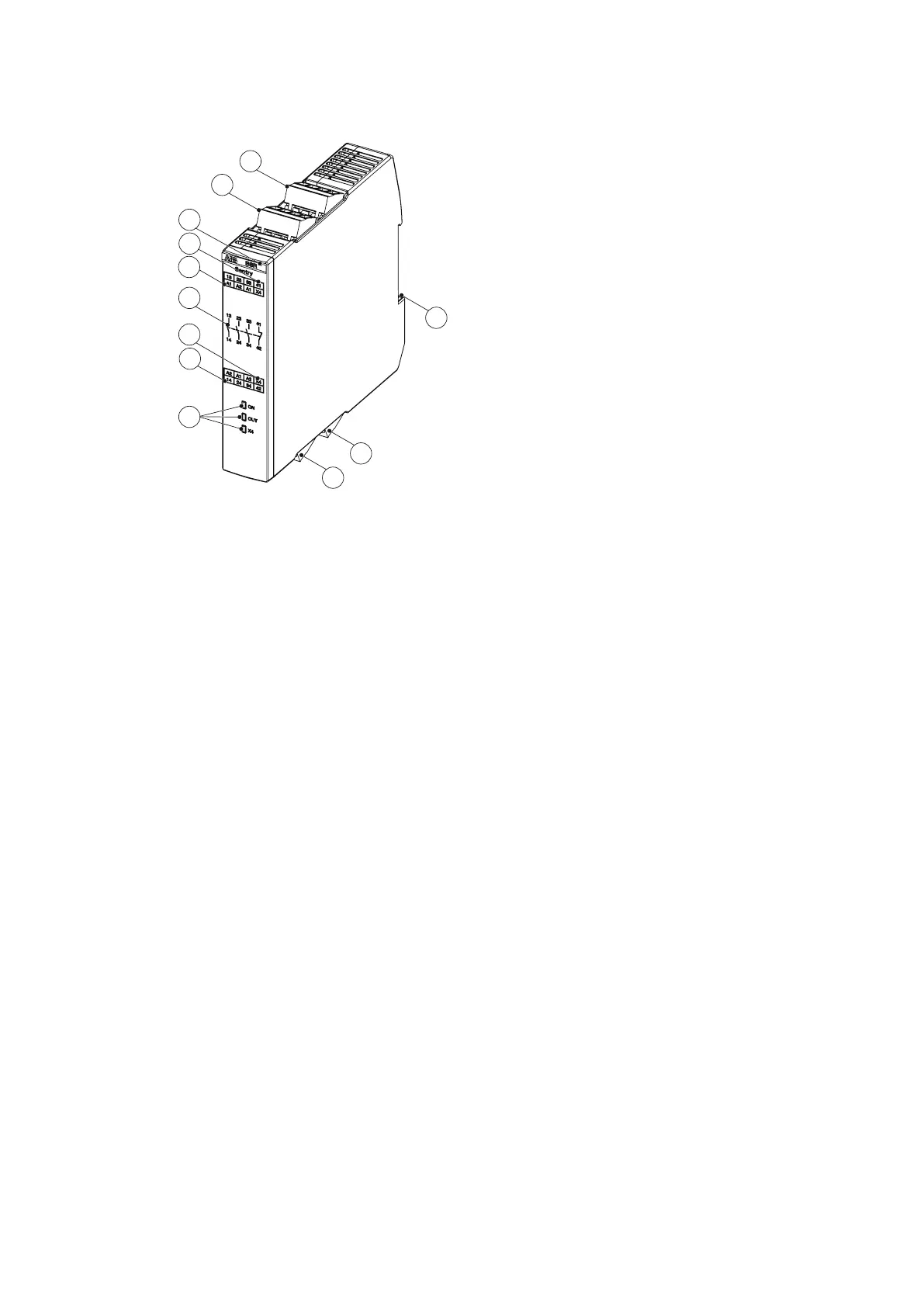

A. Connection block, top side back.
B. Connection block, top side front.
C. Product name.
D. Print for connection block, top side back.
E. Print for connection block, bottom side front.
F. Relay output configuration.
G. Print for connection block, top side front.
H. Print for connection block, bottom side back.
J. LEDs for status indication.
K. Connection block, bottom side front.
L. Connection block, bottom side back.
M. DIN rail latching device.
