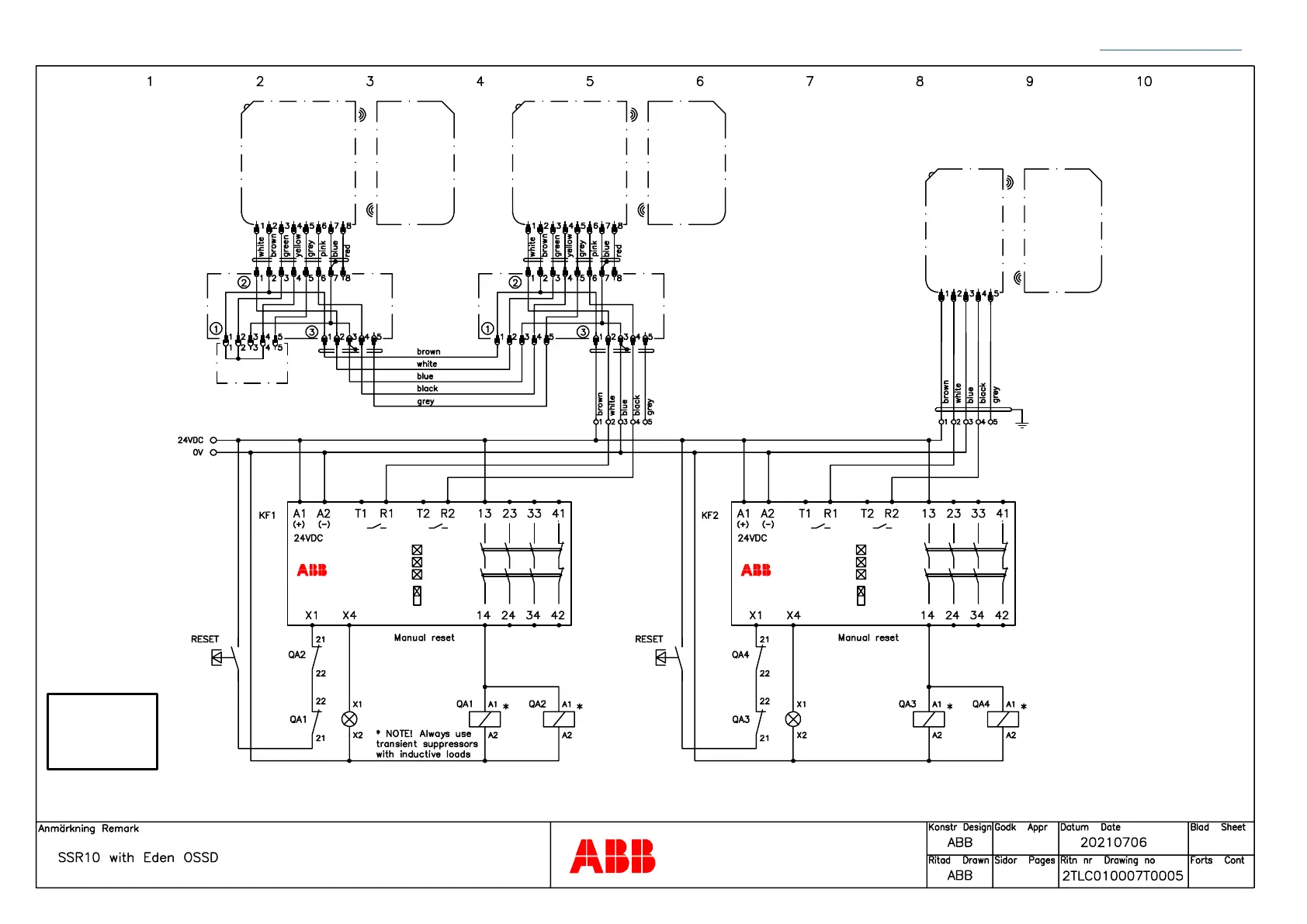

CONNECTION DIAGRAMS SENTRY
19 Back to table of contents
M12-3H M12-3H
OSSD out1 +24V OSSD in1 OSSD in2
Info
OSSD out2 0V
Info
Adam M12-8
OSSD-Info
Eva
General Code
OSSD out1 +24V OSSD in1 OSSD in2
Info
OSSD out2 0V
Info
Adam M12-8
OSSD-Info
Eva
General Code
+24V OSSD1 0V OSSD2
Info
Adam M12-5
OSSD-Info
Eva
General Code
JSOP-1
SSR10SENTRY
CH1
MODE
CH2
M
A
CH1 CH2
Jokab Safety
SSR10SENTRY
CH1
MODE
CH2
M
A
CH1 CH2
Jokab Safety
PLe
According to
EN ISO 13849-1
Note: The stated PL is only valid if all relevant requirements according to EN ISO 13849-1/-2 are met. It is the responsibility of the
machine builder to make a risk assessment and make sure that the appropriate functional safety levels are achieved.
