ABB C1900 Series User Guide

4
…2 DISPLAYS AND CONTROLS
2.3 Faceplate Combinations and Product Codes – Fig. 2.3

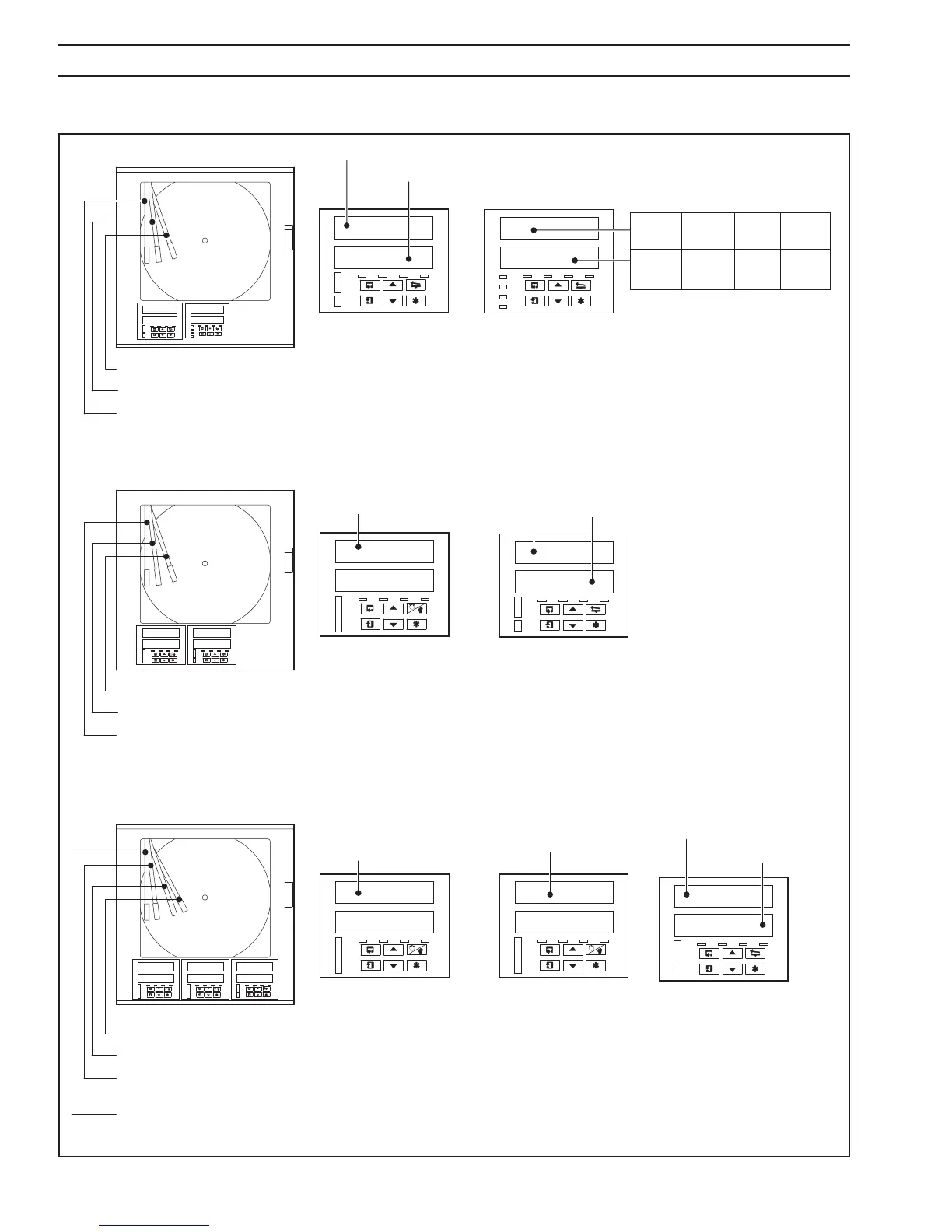

Fig. 2.3 Faceplate Combinations and Product Codes
Model 1951
Hot product (Recording)
Red Pen (1) – Hot Product
Green Pen (2) – Select (None), Divert Set Point or Cold Product
Violet Pen – 4-Position True Time Forward/Divert
Divert Temperature
Cold 2nd HP Blank
Product RTD Units
Blank 1st-2nd DT Blank
RTD Units
Display Options
Dairy/Pasteurizer
Faceplate
Record Faceplate
Model 1953
Red Pen (1) – Hot Product
Green Pen (2) – Select (None), Divert Set Point or Cold Product
Cold Product
(Measurement
and Control)
Control Faceplate Control Faceplate
Model 1952
Hot Water Measurement
and Control
(No Recording)
Red Pen (1) – Hot Product
Green Pen (2) – Select (None), Divert Set Point or Cold Product (only if option module is selected)
Violet Pen – 4-Position True Time Forward/Divert
Hot Product (Recording)
Divert Temperature
Control Faceplate
Dairy/Pasteurizer
Faceplate
Violet Pen – 4-Position True Time Forward/Divert Event
Hot Water Measurement
and Control
(No Recording)
Hot Product
(Recording)
Divert Temperature
Dairy/Pasteurizer
Faceplate
Blue Pen (3) – No trace if auxiliary input is used for 2nd RTD option
– Auxiliary input for pressure etc. traced but not displayed
HP = Hot product
DT = Divert Temperature
