Connection to integral mount design
Dual- compartment housing
Single-compartment housing
1 Terminals for power supply
2 Cover for power supply terminals
3
Terminals for inputs and outputs
4 Terminal for potential equalization
5 LCD indicator
6
Bracket for LCD indicator (park position)

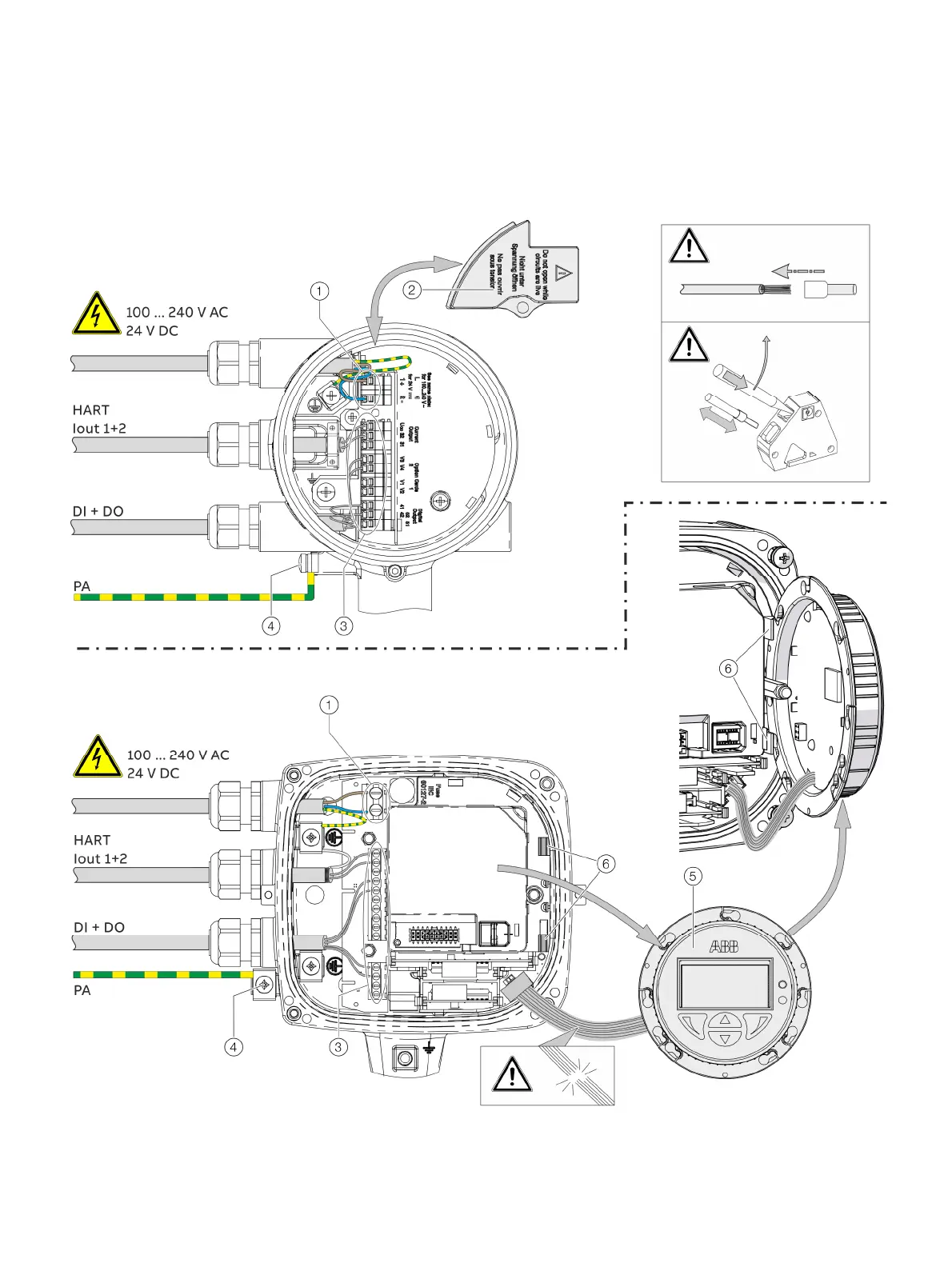

Figure 48: Connection to device (example), PA = potential equalization
