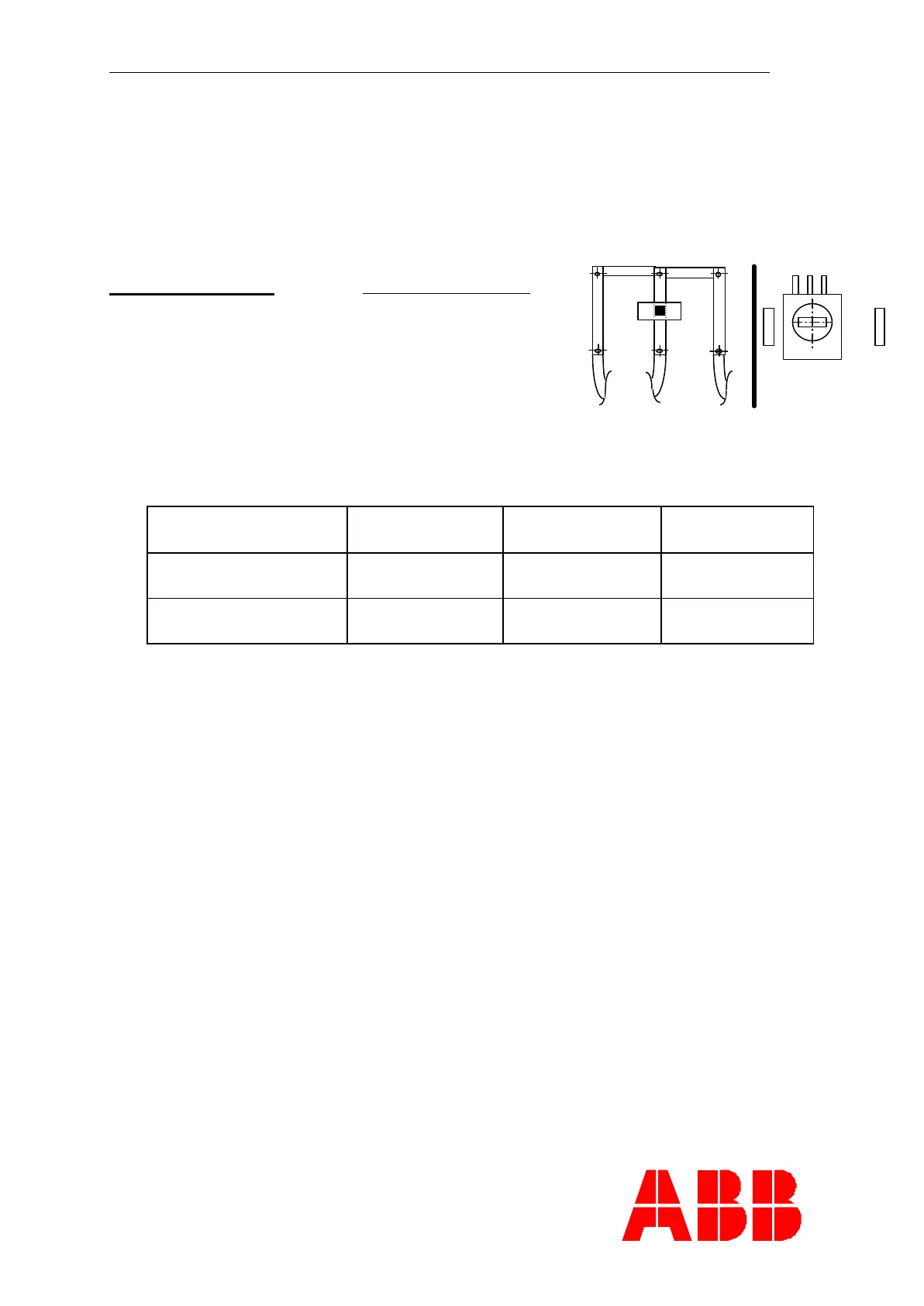

CS1000: accuracy in rectangular primary bar coupling
configuration
CS1000: précision en configuration couplage barre primaire
rectangulaire
General parameters:
I
PN
= 1000A; AC (50 Hz)
R
M
= 4 Ω
Supply Voltage: ±24 V
Paramètres généraux:
I
PN
= 1000A; AC (50 Hz)
R
M
= 4 Ω
Alimentation: ±24 V
Position of the sensor Is moy Ip moy Accuracy moy %
studs on the top 0,2 1002,77 -0,008
studs on the side 0,201 1004,53 0,014
