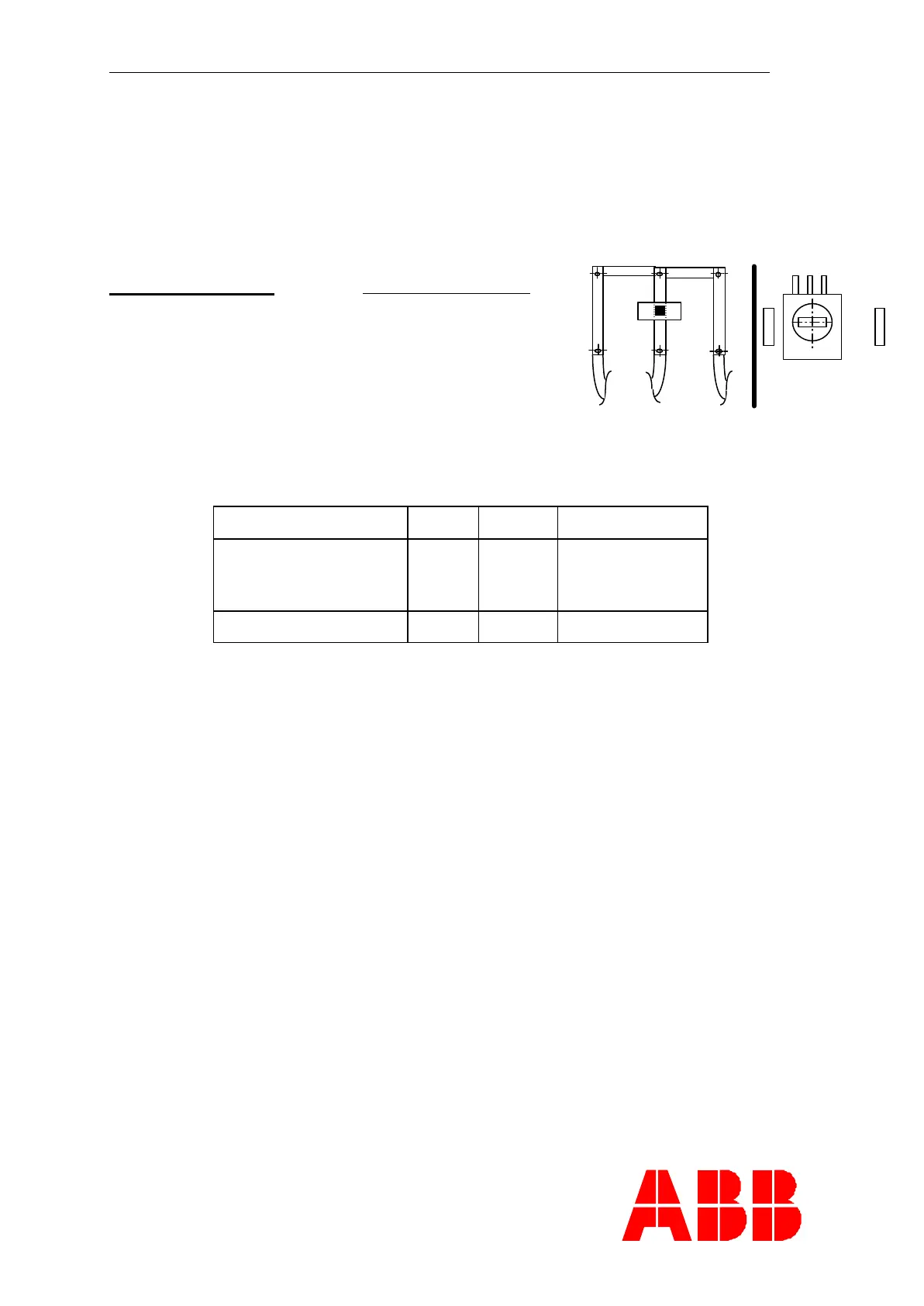

CS500: accuracy in rectangular primary bar coupling
configuration
CS500: précision en configuration couplage barre primaire
rectangulaire
General parameters:
I
PN
= 500A; AC (50 Hz)
R
M
= 10 Ω
Supply Voltage: ±24 V
Paramètres généraux:
I
PN
= 500A; AC (50 Hz)
R
M
= 10 Ω
Alimentation: ±24 V
Position of the sensor Is moy Ip moy Accuracy moy %
studs on the top 0,099 496,94 -0,021
studs on the side 0,099 497,35 -0,011
