15.4 PR120/D-BT - WL-COM wireless communication module
15.4.1 General characteristics
This module enables wireless communication between the protection releases and a handheld PC (PDA) or a laptop with a Bluetooth port. The
module is designed specifically for use with the SD-Pocket application.

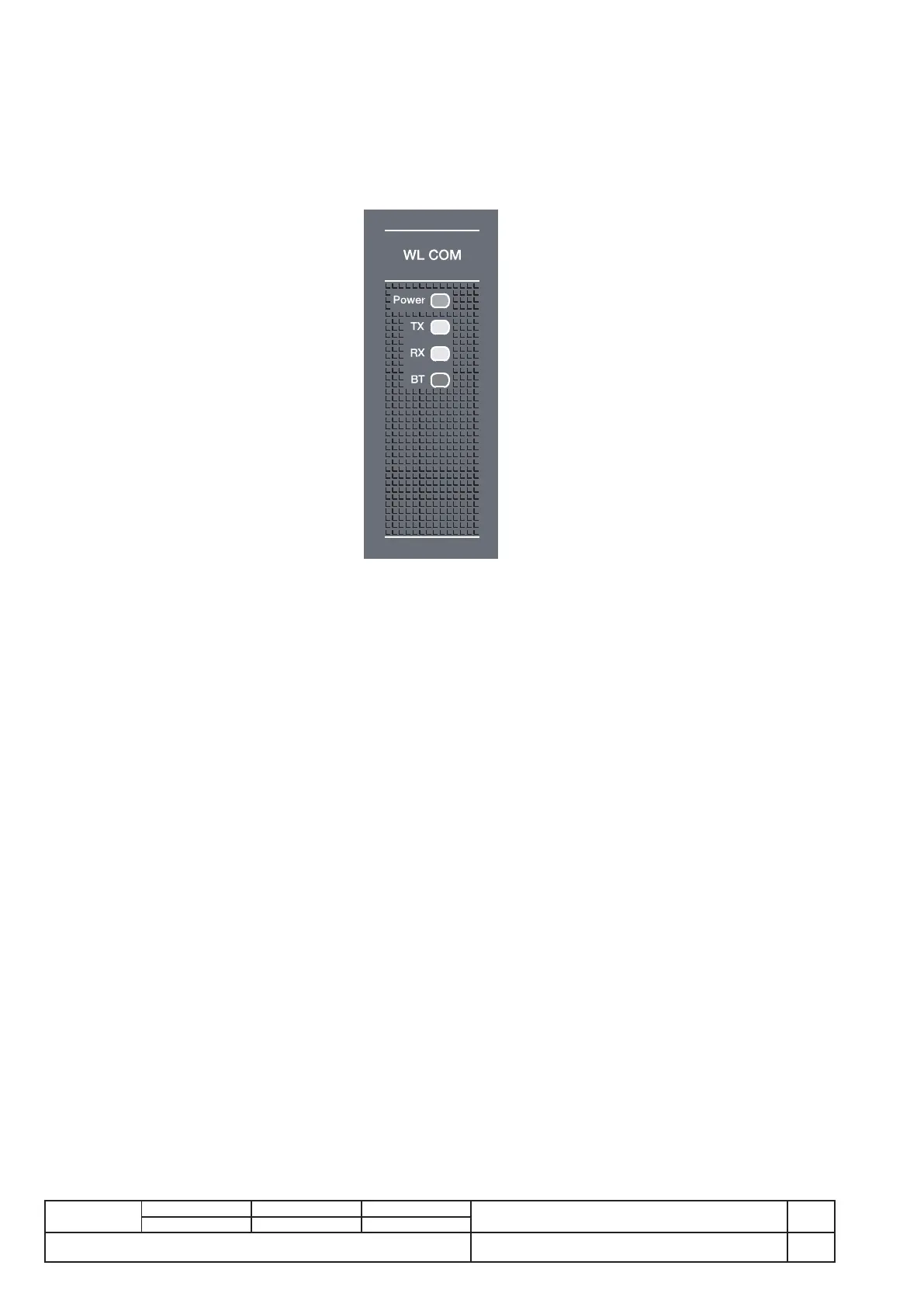

15.4.2 Front view
- "Power" LED (lit with Vaux or PR120/V installed)
- LED Rx/Tx (send/receive signal)
- LED BT (Bluetooth link enabled)
15.4.3 Releases complete with the module
- optional for PR122/P
- optional for PR123/P
15.4.4 Power supply
The PR120/D-BT WL-COM module is powered in auxiliary mode, from the PR120/V module, as specified in the description of the module, or by
a PR030/B power supply unit.
15.4.5 Connection
For a proper connection, bear in mind that the module's range of action is 10 meters in air.
